40100039 ADICOMP Replacement Part

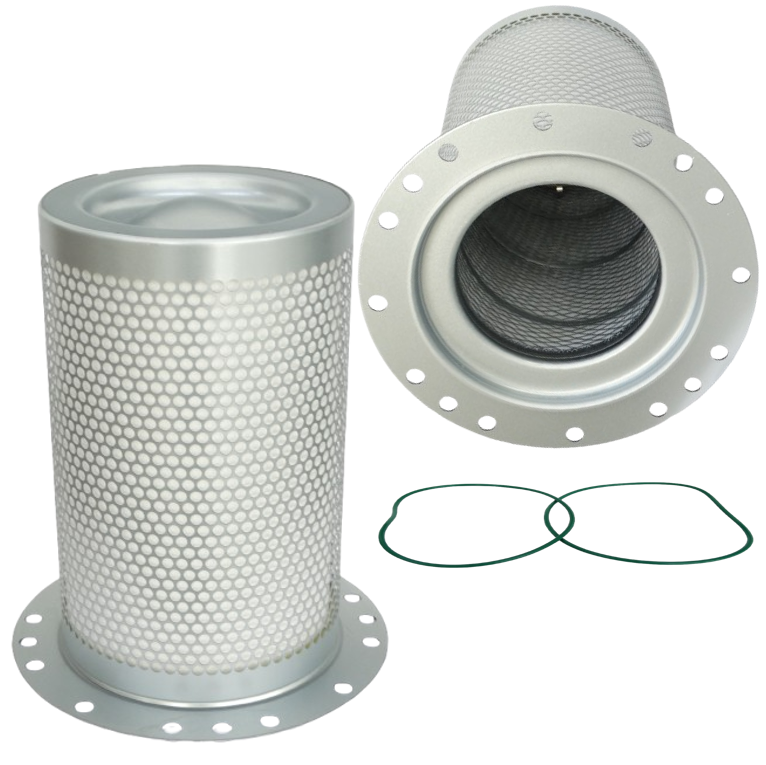

40100039 is an ADICOMP compressor part number. In the Compressor Parts Finder database, ADICOMP 40100039 cross-references to OCP OS290-005, an air/oil separator, fitted to 13 listed compressor models.
ADICOMP 40100039 cross-reference details
- Brand
- ADICOMP
- Searched part number
- 40100039
- Matched part number
- 40100039
- OCP replacement SKU
- OS290-005
- Keltec / alternative SKU
- KV290-005
- Product type
- Air/Oil Separator
Compressor models this part fits
ADICOMP 40100039 / OCP OS290-005 is listed for the following compressors.
- ATLAS COPCO—GA55 1st Gen / 550.001 À 550.999 / 75 HP / 7/8,5/10/12 BAR
- ATLAS COPCO—GA75 1st Gen / 750.001 À 750.999 / 100 HP / 7/8,5/10/12 BAR
- CHICAGO PNEUMATIC—CPE-100 / BQD109744> / Aug-2017> / 100 HP
- CHICAGO PNEUMATIC—CPE-100 / BQD120107> / Mar/2023> / 100 HP
- CHICAGO PNEUMATIC—CPE-125 / 125 HP
- CHICAGO PNEUMATIC—CPE-125 / BQD109744> / Aug-2017> / 125 HP
- CHICAGO PNEUMATIC—CPE-125 / BQD120107> / Mar/2023> / 125 HP
- CHICAGO PNEUMATIC—CPVS-100 / BQD120107> / Mar-2021> / 100 HP
- CHICAGO PNEUMATIC—CPVS-125 / AP1210460 / 2010 / 125 HP
- CHICAGO PNEUMATIC—CPVS-125 / BQD120107> / Mar-2021> / 125 HP
- CHICAGO PNEUMATIC—CPVS-150 / AP1210460 / 2010 / 150 HP
- CHICAGO PNEUMATIC—S-16/100 / 100 HP / 7/8,5/10/12 BAR
- CHICAGO PNEUMATIC—S-16/75 / 75 HP / 7/8,5/10/12 BAR
Technical specifications
Dimensions and media data for the OCP replacement of ADICOMP 40100039.
- D1 outer diameter
- 220 mm (8.66 in)
- D2 diameter
- 300 mm (11.81 in)
- D3 diameter
- 14 mm
- H1 height
- 350 mm (13.78 in)
- H2 height
- 349 mm (13.74 in)
- GTIN
- 8721606861162
This part also replaces
The same OCP replacement covers these OEM codes as well as ADICOMP 40100039.
