CD1628610827 AIR MAZE Replacement Part
CD1628610827 is an AIR MAZE compressor part number. In the Compressor Parts Finder database, AIR MAZE CD1628610827 cross-references to OCP AF300-081, an air filter, fitted to 10 listed compressor models.
AIR MAZE CD1628610827 cross-reference details
- Brand
- AIR MAZE
- Searched part number
- CD1628610827
- Matched part number
- CD1628610827
- OCP replacement SKU
- AF300-081
- Keltec / alternative SKU
- KC300-081
- Product type
- Air Filter
Compressor models this part fits
AIR MAZE CD1628610827 / OCP AF300-081 is listed for the following compressors.
- ATLAS COPCO—XRV1200X330 EXPORT / MADE IN INDIA / 12/2012> / CUMMINS NTA855BC / 23 BAR
- CHICAGO PNEUMATIC—CPS1200-330 / MADE IN INDIA / 12/2012> / CUMMINS NTA855BC / 23 BAR
- CHICAGO PNEUMATIC—CPS1200-330 / PNE / Dec/12 / CUMMINS NTA855BC / 23 BAR
- CHICAGO PNEUMATIC—CPS1250-300 / CUMMINS / 20 BAR
- ELGI—DT1100-300 After 2011 / NTA855C CUMMINS / 21 BAR / 2011>
- ELGI—DT1100-300 antes 2011 / NTA855C CUMMINS / 21 BAR / 2011<
- ELGI—DT600-100 antes 2011 / 6BTA CUMMINS / 7 BAR / 2011<
- ELGI—DT650-200 antes 2011 / 6BTA CUMMINS / 14 BAR / 2011>
- ELGI—DT900-100 / 6CTA CUMMINS / 7 BAR
- KIRLOSKAR—K300-V3-R

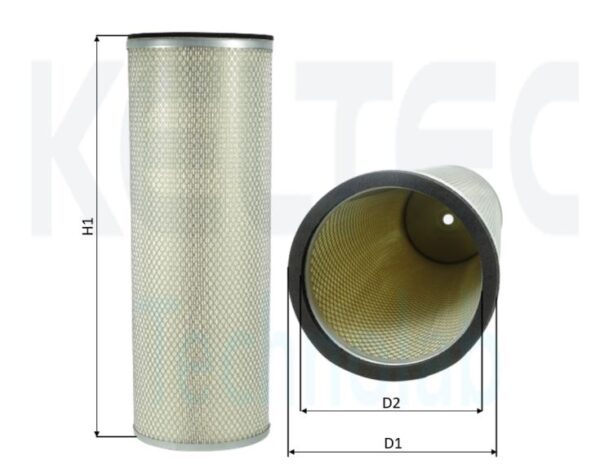

Technical specifications
Dimensions and media data for the OCP replacement of AIR MAZE CD1628610827.
- D1 outer diameter
- 188 mm (7.4 in)
- D2 diameter
- 155 mm (6.1 in)
- D3 diameter
- 17 mm (0.67 in)
- H1 height
- 654 mm (25.75 in)
- H2 height
- 646 mm (25.43 in)
This part also replaces
The same OCP replacement covers these OEM codes as well as AIR MAZE CD1628610827.
