SP120035 AIR-TEC Replacement Part

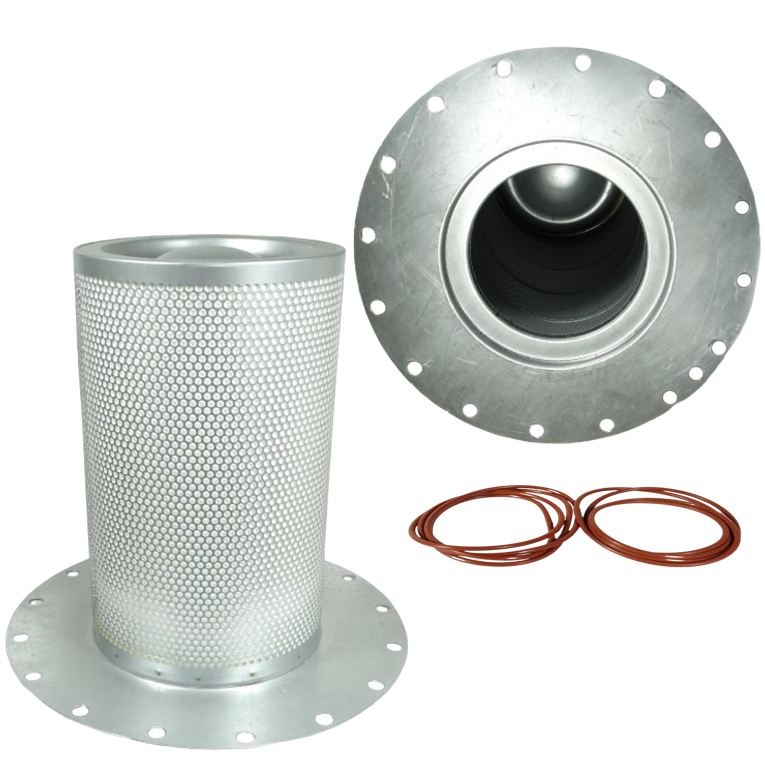

SP120035 is an AIR-TEC compressor part number. In the Compressor Parts Finder database, AIR-TEC SP120035 cross-references to OCP OS690-009, an air/oil separator, fitted to 14 listed compressor models.
AIR-TEC SP120035 cross-reference details
- Brand
- AIR-TEC
- Searched part number
- SP120035
- Matched part number
- SP120035
- OCP replacement SKU
- OS690-009
- Keltec / alternative SKU
- KV690-009
- Product type
- Air/Oil Separator
Compressor models this part fits
AIR-TEC SP120035 / OCP OS690-009 is listed for the following compressors.
- ATLAS COPCO—G200 / 2.012> / 275 HP
- ATLAS COPCO—G250 (W) / 2.012> / 325 HP
- ATLAS COPCO—GA200 (W) / AIF063865> / 12/2.005> / 275 HP / 7,5/8,5/10 BAR
- ATLAS COPCO—GA250 (W) / AIF063865> / 01/2.003> / 325 HP / 13 BAR
- ATLAS COPCO—GA250 (W) / AIF063865> / 01/2.003> / 325 HP / 7,5/8,5/10 BAR
- ATLAS COPCO—GA250 (W) / AIF063865> / 12/2.005> / 325 HP / 13 BAR
- ATLAS COPCO—GA250 (W) / AIF063865> / 12/2.005> / 325 HP / 7,5/8,5/10 BAR
- ATLAS COPCO—GA315 (W) / AIF063865> / 01/2.003> / 400 HP / 13 BAR
- ATLAS COPCO—GA315 (W) / AIF063865> / 01/2.003> / 400 HP / 7,5/8,5/10 BAR
- ATLAS COPCO—GA315 (W) / AIF063865> / 12/2.005> / 400 HP / 13 BAR
- ATLAS COPCO—GA315 (W) / AIF063865> / 12/2.005> / 400 HP / 7,5/8,5/10 BAR
- CHICAGO PNEUMATIC—CPG-380 / Jun-2009> / 380 HP
- CHICAGO PNEUMATIC—CPG-450 / Jun-2009> / 450 HP
- CHICAGO PNEUMATIC—CPG-480 / Jun-2009> / 480 HP
Technical specifications
Dimensions and media data for the OCP replacement of AIR-TEC SP120035.
- D1 outer diameter
- 350 mm (13.78 in)
- D2 diameter
- 595 mm (23.43 in)
- D3 diameter
- 264 mm (10.39 in)
- H1 height
- 542 mm (21.34 in)
- H2 height
- 540 mm
- GTIN
- 8721606862206
This part also replaces
The same OCP replacement covers these OEM codes as well as AIR-TEC SP120035.
