3422016500 AIRMAN Replacement Part

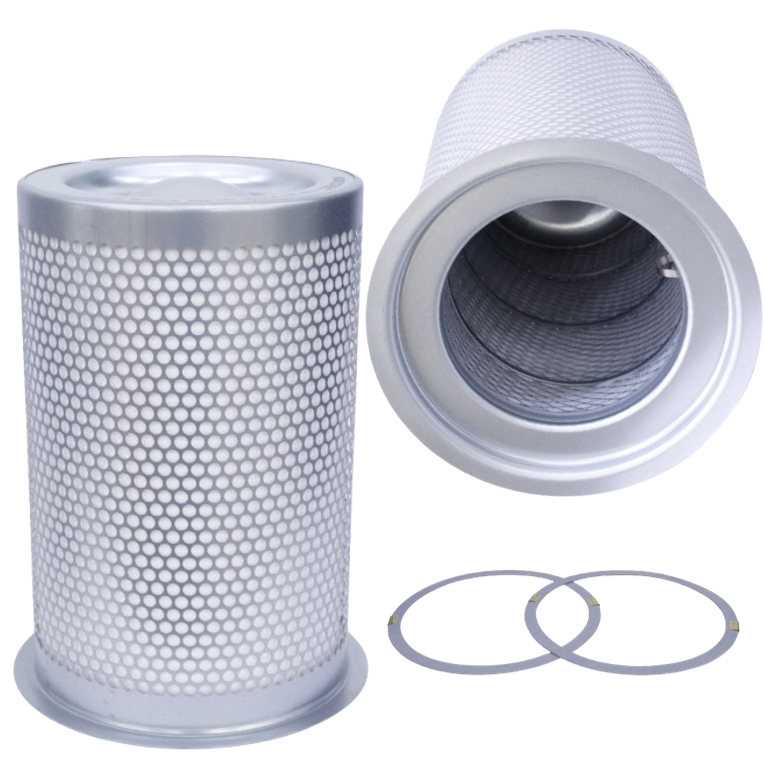

3422016500 is an AIRMAN compressor part number. In the Compressor Parts Finder database, AIRMAN 3422016500 cross-references to OCP OS180-047, an air/oil separator, fitted to 1 listed compressor model.
AIRMAN 3422016500 cross-reference details

- Brand
- AIRMAN
- Searched part number
- 3422016500
- Matched part number
- 3422016500
- OCP replacement SKU
- OS180-047
- Keltec / alternative SKU
- KV180-047
- Product type
- Air/Oil Separator
Compressor models this part fits
AIRMAN 3422016500 / OCP OS180-047 is listed for the following compressors.
Technical specifications
Dimensions and media data for the OCP replacement of AIRMAN 3422016500.
- D1 outer diameter
- 220 mm (8.66 in)
- D2 diameter
- 250 mm (6.61 in)
- D3 diameter
- 140 mm (5.51 in)
- H1 height
- 340 mm (13.39 in)
- Flow
- 14 Nm³/min
- Residual oil content
- 3 ppm
- Media construction
- Wrapped
- Media material
- Fiberglass
- Service life *
- 4000 h
* Estimated figure for a complete service: air filter, separator, valves and the matching OCP lubricant (OCP 4000 = 4,000 h).
This part also replaces
The same OCP replacement covers these OEM codes as well as AIRMAN 3422016500.
