1625165491 BOLAITE Replacement Part

BOLAITE 1625165491 cross-reference details

Brand

BOLAITE

Searched part number

1625165491

Matched part number

1625165491

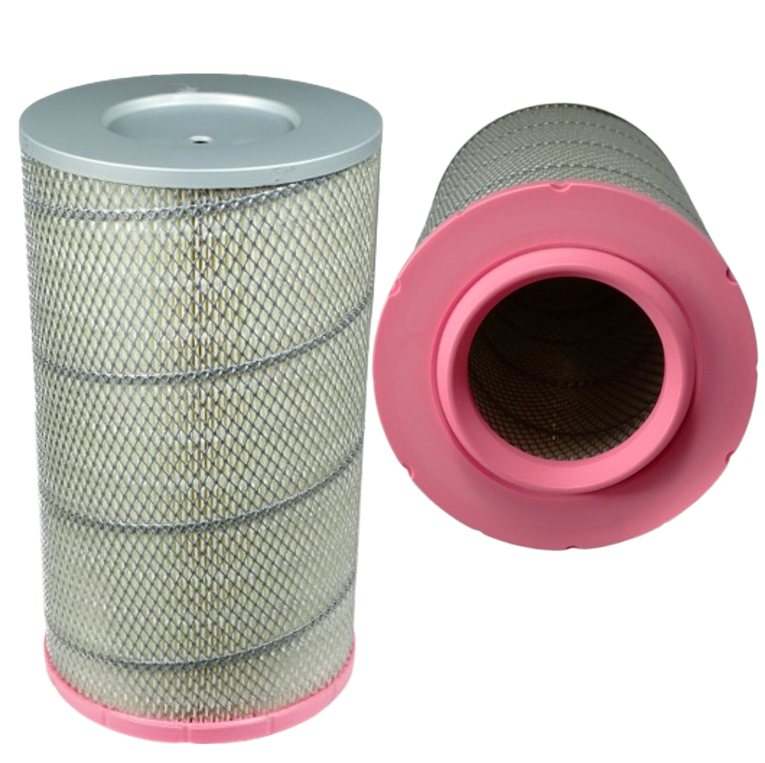

OCP replacement SKU

AF410-004

Keltec / alternative SKU

KC410-004

Product type

Air Filter

Compressor models this part fits

BOLAITE 1625165491 / OCP AF410-004 is listed for the following compressors.

• ATLAS COPCO—GA300
• ATLAS COPCO—GA345
• ATLAS COPCO—GA355
• ATLAS COPCO—GA707(W) / 60 HP / 7/8,5/10/12 BAR
• ATLAS COPCO—GA710(W) / 75 HP / 7/8,5/10/12 BAR
• ATLAS COPCO—XA(S)(SS)85Dd / DEUTZ F3L9120
• ATLAS COPCO—XA(S)(SS)90Dd / DEUTZ F3L9120
• ATLAS COPCO—XA75Dd / DEUTZF3L1011
• ATLAS COPCO—XA80Pd / PERKINS 4.236
• ATLAS COPCO—XAS55Dd / DEUTZF3L1011
• ATLAS COPCO—XAS60Pd / Oct/1980> / PERKINS d4203
• ATLAS COPCO—XAS65Dd / DEUTZ
• BOGE—S 100 8/10/13 bar 75,0 kW
• BOGE—S 75 8 bar 55,0 kW
• BOGE—S 90 8/10 bar 65,0 kW
• BOGE—SD 100 8/10/13 bar 75,0 kW
• BOGE—SD 75 8 bar 55,0 kW
• BOGE—SD 90 8/10 bar 65,0 kW
• BOGE—SDF 100 8/10/13 bar 75,0 kW
• BOGE—SF 100 8/10/13 bar 75,0 kW
• CHICAGO PNEUMATIC—180-Q / MWM4.1 / 7 BAR
• CHICAGO PNEUMATIC—260-Q / MWM4.1 / 7 BAR
• CHICAGO PNEUMATIC—360-Q / MWM4.1T / 7 BAR
• CHICAGO PNEUMATIC—CPC-100 / CNK> / 39753 / 100 HP
• CHICAGO PNEUMATIC—CPC-100 / CNK> / Nov/08 / 100HP
• CHICAGO PNEUMATIC—CPC-50 / BRP / Aug-2010> / 50 HP / 7/10/13 BAR
• CHICAGO PNEUMATIC—CPC-60 / BRP / Aug-2010> / 60 HP / 7/10/13 BAR
• CHICAGO PNEUMATIC—CPC-75 / BRP / Aug-2010> / 75 HP / 13 BAR
• COMPAIR—6060N / 60 HP
• COMPAIR—6075N / 75 HP
• FS-CURTIS—SA55 / HP
• GARDNER DENVER—ES275
• INGERSOLL RAND—CG 600 and CS 700 (12m3/min)
• KAESER—CS-120 / 8-11-15 (BAR)
• KAESER—CS-121 Old / 8-11-15 (BAR)
• KAESER—CS-75 / 8-11-15 (BAR)
• KAESER—CS-76 Old
• KAESER—CS-90 / 8-11-15 (BAR)
• KAESER—CS-91 Old / 8-11-15 (BAR)
• KAESER—M120T
• SULLAIR—LS16-100 ARGENTINA / 100 HP / 05/01/2008>
• SULLAIR—LS16-75 ARGENTINA / 75 HP / 05/01/2008>

Technical specifications

Dimensions and media data for the OCP replacement of BOLAITE 1625165491.

D1 outer diameter

197.5 mm (7.78 in)

D2 diameter

105 mm (4.13 in)

D3 diameter

9 mm (0.35 in)

H1 height

376 mm (14.8 in)

H2 height

364 mm (14.33 in)

This part also replaces

The same OCP replacement covers these OEM codes as well as BOLAITE 1625165491.

and 111 more
