1625170486 BOLAITE Replacement Part

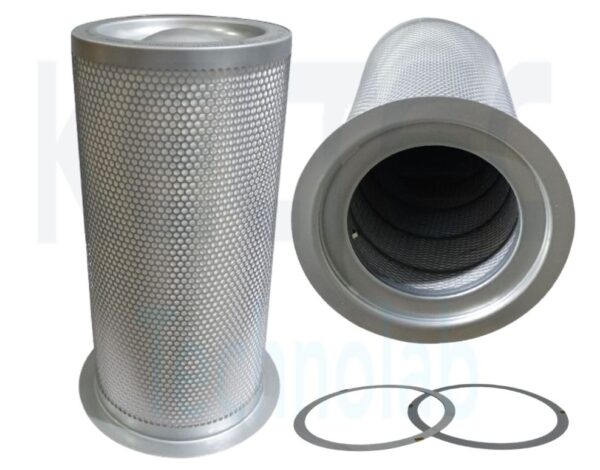

1625170486 is a BOLAITE compressor part number. In the Compressor Parts Finder database, BOLAITE 1625170486 cross-references to OCP OS535-003, an air/oil separator, fitted to 12 listed compressor models.

BOLAITE 1625170486 cross-reference details

Brand
BOLAITE
Searched part number
1625170486
Matched part number
1625170486
OCP replacement SKU
OS535-003
Keltec / alternative SKU
KV535-003
Product type
Air/Oil Separator

Or email sales@ocpeurope.com

← Back to search tool

Compressor models this part fits

BOLAITE 1625170486 / OCP OS535-003 is listed for the following compressors.

  • BOGE—SG 270
  • CHICAGO PNEUMATIC—S-22/200,H,L,M / VSD BRP076038> / 200 HP / 7/8,5/10 BAR
  • ELGI—EE110 HORIZON / 150 HP / 7/8/10/12 BAR / 04/2018>
  • ELGI—EE132 HORIZON / 180 HP / 7/8/10/12 BAR / 04/2018>
  • ELGI—EE160 HORIZON / 215 HP / 7/8/10/12 BAR / 04/2018>
  • ELGI—EE75 HORIZON / 100 HP / 7/8/10/12 BAR / 04/2018>
  • ELGI—EE90 HORIZON / 120 HP / 7/8/10/12 BAR / 04/2018>
  • ELGI—EH132 / 180 HP / 7/8/10 BAR
  • ELGI—EH160 / 215 HP / 7/8/10 BAR
  • PNEUMOFORE—UV8 - BOMBA DE VACUO
  • SCHULZ—SRP4250E(AC) / 250 HP
  • SCHULZ—SRP4250FLEX / 250 HP

Technical specifications

Dimensions and media data for the OCP replacement of BOLAITE 1625170486.

D1 outer diameter
300 mm (11.81 in)
D2 diameter
13.97 in
D3 diameter
220 mm (8.66 in)
H1 height
600 mm (23.62 in)

This part also replaces

The same OCP replacement covers these OEM codes as well as BOLAITE 1625170486.

KELTEC TECHNOLAB

and 15 more
