CSF40 CART Replacement Part

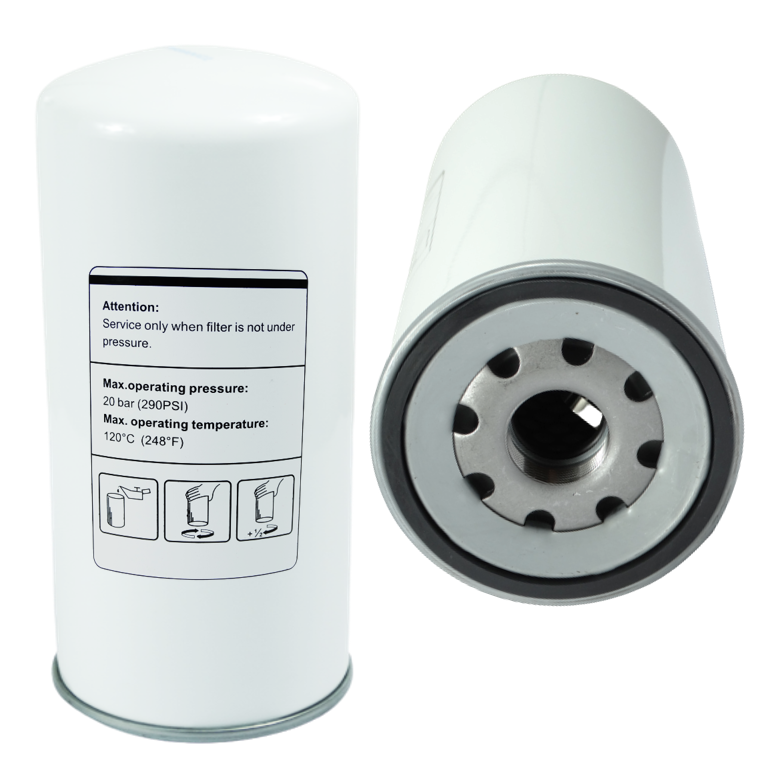

CSF40 is a CART compressor part number. In the Compressor Parts Finder database, CART CSF40 cross-references to OCP OS690-021, an air/oil separator, fitted to 3 listed compressor models.
CART CSF40 cross-reference details
- Brand
- CART
- Searched part number
- CSF40
- Matched part number
- CSF40
- OCP replacement SKU
- OS690-021
- Keltec / alternative SKU
- KD690-021
- Product type
- Air/Oil Separator
Compressor models this part fits
CART CSF40 / OCP OS690-021 is listed for the following compressors.
- CHICAGO PNEUMATIC—CPB-15 / <BRP073237 / 15 HP / 7/10/13 BAR
- CHICAGO PNEUMATIC—CPB-20 / BRP073237> / 20 HP / 7/10/13 BAR
- GUNAIYOU—TG30CTAS-16-500
Technical specifications
Dimensions and media data for the OCP replacement of CART CSF40.
- D1 outer diameter
- 121.5 mm (4.78 in)
- D2 diameter
- 115 mm (4.53 in)
- H1 height
- 262 mm (10.31 in)
- H2 height
- 260 mm (10.24 in)
- G1 thread
- M32X1.75
- GTIN
- 8721606862213
This part also replaces
The same OCP replacement covers these OEM codes as well as CART CSF40.
CHICAGO PNEUMATIC
CONSENSO
CURTIS
FAI FILTRI
GUNAYOU
HIFI FILTER
KELTEC TECHNOLAB
KSI
OCP
SOTRAS
UNIFILTER
WORTHINGTON
YVELFLUIDES
and 1 more
