1028856625 CHICAGO PNEUMATIC Replacement Part

1028856625 is a CHICAGO PNEUMATIC compressor part number. In the Compressor Parts Finder database, CHICAGO PNEUMATIC 1028856625 cross-references to OCP OS125-064, an air/oil separator, fitted to 9 listed compressor models.

Also written as 1028 8566 25, 1028-8566-25 and 1028.8566.25.

CHICAGO PNEUMATIC 1028856625 cross-reference details

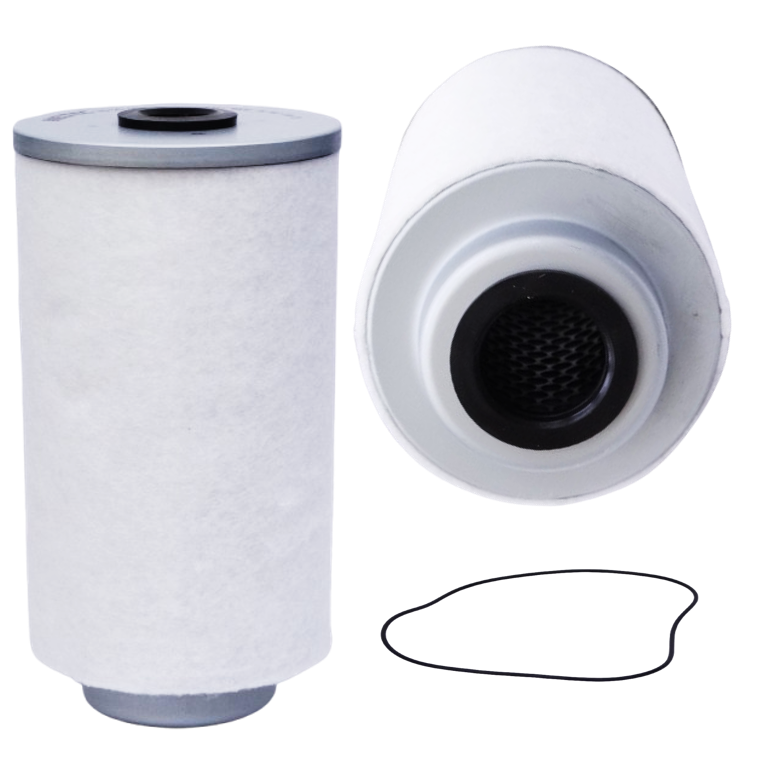

OCP OS125-064 — replacement part for CHICAGO PNEUMATIC 1028856625
Brand
CHICAGO PNEUMATIC
Searched part number
1028856625
Matched part number
1028856625
OCP replacement SKU
OS125-064
Keltec / alternative SKU
KD125-064
Product type
Air/Oil Separator

Compressor models this part fits

CHICAGO PNEUMATIC 1028856625 / OCP OS125-064 is listed for the following compressors.

Technical specifications

Dimensions and media data for the OCP replacement of CHICAGO PNEUMATIC 1028856625.

D1 outer diameter
138 mm (5.43 in)
D2 diameter
45 mm (1.77 in)
D3 diameter
28 mm (1.1 in)
H1 height
255 mm (10.04 in)
H2 height
230 mm (9.06 in)
Flow
10 Nm³/min
Residual oil content
3 ppm
Media construction
Wrapped
Media material
Fiberglass
Service life *
4000 h
GTIN
8721606860332

* Estimated figure for a complete service: air filter, separator, valves and the matching OCP lubricant (OCP 4000 = 4,000 h).

This part also replaces

The same OCP replacement covers these OEM codes as well as CHICAGO PNEUMATIC 1028856625.
