1028865826 CHICAGO PNEUMATIC Replacement Part

1028865826 is a CHICAGO PNEUMATIC compressor part number. In the Compressor Parts Finder database, CHICAGO PNEUMATIC 1028865826 cross-references to OCP AF980-004, an air filter, fitted to 18 listed compressor models.

Also written as 1028 8658 26, 1028-8658-26 and 1028.8658.26.

CHICAGO PNEUMATIC 1028865826 cross-reference details

OCP AF980-004 — replacement part for CHICAGO PNEUMATIC 1028865826
Brand
CHICAGO PNEUMATIC
Searched part number
1028865826
Matched part number
1028865826
OCP replacement SKU
AF980-004
Keltec / alternative SKU
KC980-004
Product type
Air Filter

Compressor models this part fits

CHICAGO PNEUMATIC 1028865826 / OCP AF980-004 is listed for the following compressors.

Technical specifications

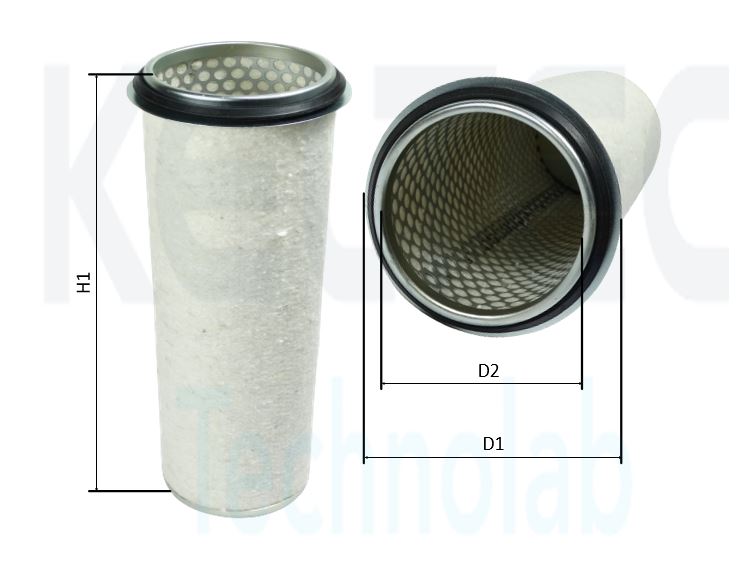

Dimensions and media data for the OCP replacement of CHICAGO PNEUMATIC 1028865826.

D1 outer diameter
121.5 mm (4.78 in)
D2 diameter
112.5 mm (4.43 in)
D3 diameter
99 mm (3.9 in)
D4 diameter
17.2 mm (0.68 in)
H1 height
379 mm (14.92 in)
H2 height
348 mm (13.7 in)
GTIN
8721606860103

This part also replaces

The same OCP replacement covers these OEM codes as well as CHICAGO PNEUMATIC 1028865826.
