1092137320 CHICAGO PNEUMATIC Replacement Part

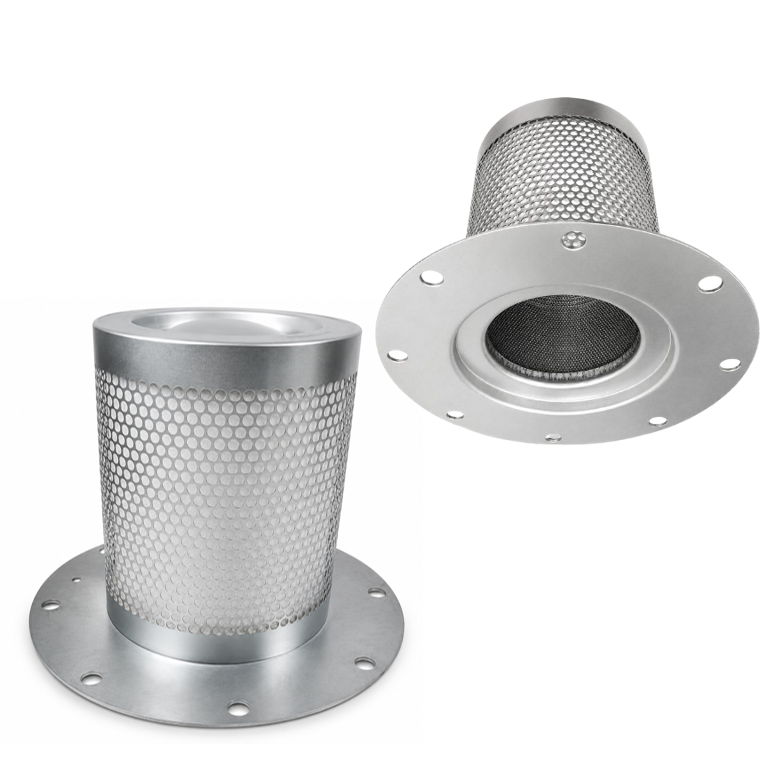

1092137320 is a CHICAGO PNEUMATIC compressor part number. In the Compressor Parts Finder database, CHICAGO PNEUMATIC 1092137320 cross-references to OCP OS455-023, an air/oil separator, fitted to 10 listed compressor models.
CHICAGO PNEUMATIC 1092137320 cross-reference details
- Brand
- CHICAGO PNEUMATIC
- Searched part number
- 1092137320
- Matched part number
- 1092137320
- OCP replacement SKU
- OS455-023
- Keltec / alternative SKU
- KV455-023
- Product type
- Air/Oil Separator
Compressor models this part fits
CHICAGO PNEUMATIC 1092137320 / OCP OS455-023 is listed for the following compressors.
- ATLAS COPCO—G200 / BQR122666 / 05/2.022→ / 275HP / 7,5/8,5BAR
- ATLAS COPCO—G200VSD / BQR122666 / 05/2.022→ / 275HP / 7,5/8,5BAR
- ATLAS COPCO—G250 / BQR122666 / 05/2.022→ / 325HP / 7,5/8,5BAR
- ATLAS COPCO—G250VSD / BQR122666 / 05/2.022→ / 325HP / 7,5/8,5BAR
- CHICAGO PNEUMATIC—CPF-200 / BQR123747>> / 05/2022> / 200 HP / 6,9 BAR
- CHICAGO PNEUMATIC—CPF-270 / BQR123747>> / 270 HP / 7,5/8,5 BAR
- CHICAGO PNEUMATIC—CPF-340 / BQR123747>> / 340 HP / 7,5/8,5 BAR
- CHICAGO PNEUMATIC—CPVS-200 / BQR123747>> / 05/2022>> / 200 HP / 8,6 BAR
- CHICAGO PNEUMATIC—CPVS-270 / BQR123747>> / 05/2022>> / 270 HP / 7,5/8,5 BAR
- CHICAGO PNEUMATIC—CPVS-340 / BQR123747>> / 05/2022>> / 340 HP / 7,5/8,5 BAR
Technical specifications
Dimensions and media data for the OCP replacement of CHICAGO PNEUMATIC 1092137320.
- D1 outer diameter
- 400 mm (15.75 in)
- D2 diameter
- 550 mm (15.35 in)
- D3 diameter
- 315 mm (12.4 in)
- H1 height
- 490 mm (19.29 in)
- GTIN
- 8721606861704
This part also replaces
The same OCP replacement covers these OEM codes as well as CHICAGO PNEUMATIC 1092137320.
