20120405020 CURTIS Replacement Part

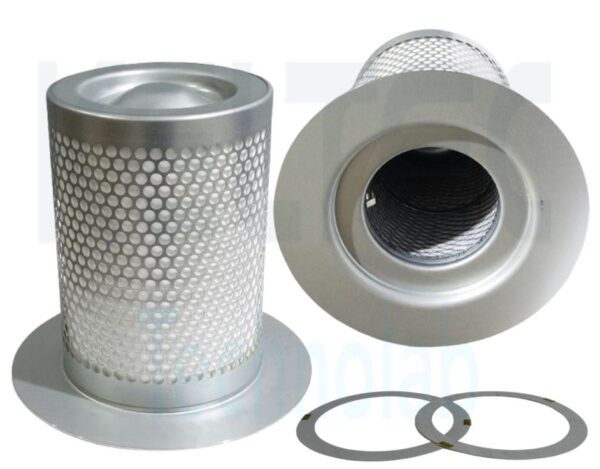

20120405020 is a CURTIS compressor part number. In the Compressor Parts Finder database, CURTIS 20120405020 cross-references to OCP OS80-062, an air/oil separator, fitted to 5 listed compressor models.
CURTIS 20120405020 cross-reference details
- Brand
- CURTIS
- Searched part number
- 20120405020
- Matched part number
- 20120405020
- OCP replacement SKU
- OS80-062
- Keltec / alternative SKU
- KV80-062
- Product type
- Air/Oil Separator
Compressor models this part fits
CURTIS 20120405020 / OCP OS80-062 is listed for the following compressors.
- FS-CURTIS—GS40 / 40 HP / 7-8-10-12 BAR
- FS-CURTIS—GS40(VSD) / 40 HP / 7-8-10-12 BAR
- FS-CURTIS—GS50 / 50 HP / 7-8-10-12 BAR
- FS-CURTIS—GS50(VSD) / 50 HP / 7-8-10-12 BAR
- INGERSOLL RAND—P250WDZ / DEUTZ
Technical specifications
Dimensions and media data for the OCP replacement of CURTIS 20120405020.
- D1 outer diameter
- 6.61 in
- D2 diameter
- 250 mm (6.61 in)
- D3 diameter
- 109 mm (4.29 in)
- H1 height
- 230 mm (9.06 in)
- GTIN
- 8721606862442
This part also replaces
The same OCP replacement covers these OEM codes as well as CURTIS 20120405020.
