960478055 DRILLTECH Replacement Part
960478055 is a DRILLTECH compressor part number. In the Compressor Parts Finder database, DRILLTECH 960478055 cross-references to OCP AF365-010, an air filter, fitted to 5 listed compressor models.
DRILLTECH 960478055 cross-reference details
- Brand
- DRILLTECH
- Searched part number
- 960478055
- Matched part number
- 960478055
- OCP replacement SKU
- AF365-010
- Keltec / alternative SKU
- KC365-010
- Product type
- Air Filter
Compressor models this part fits
DRILLTECH 960478055 / OCP AF365-010 is listed for the following compressors.
- ELGI—DS900-350 / KTA1150C CUMMINS / 24,6 BAR
- ELGI—DS900-350 After 2011 / NTA855C CUMMINS / 24,6 BAR / 2011>
- ELGI—DT450-150 / 6BTA CUMMINS / 10,5 BAR
- GARDNER DENVER—SP600 / CUMNT855
- INGERSOLL RAND—HP525
Technical specifications

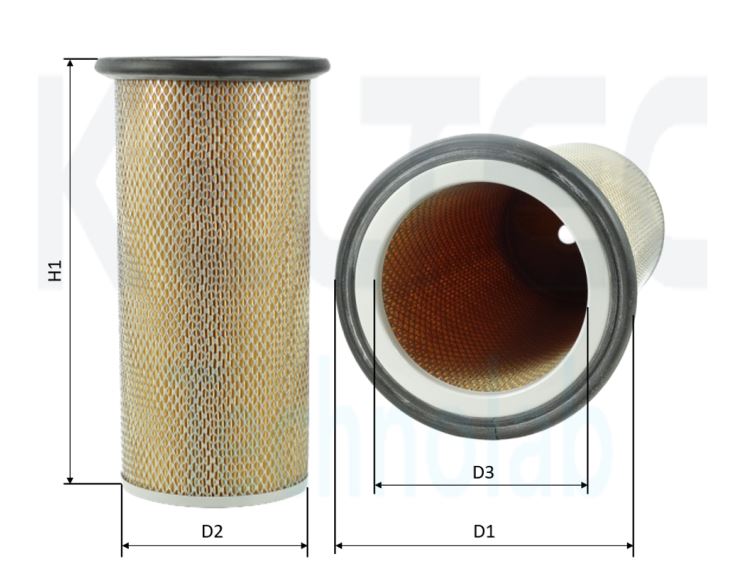

Dimensions and media data for the OCP replacement of DRILLTECH 960478055.
- D1 outer diameter
- 190 mm (7.48 in)
- D2 diameter
- 163 mm (6.42 in)
- D3 diameter
- 134 mm (5.28 in)
- D4 diameter
- 17 mm (0.67 in)
- H1 height
- 408 mm (16.06 in)
- H2 height
- 406 mm (15.98 in)
This part also replaces
The same OCP replacement covers these OEM codes as well as DRILLTECH 960478055.
ATLAS COPCO
BALDWIN FILTERS
BAUER
CREYSSENSAC
DEMAG
DONALDSON
DRILLTECH
ECOAIR
ELGI
ENGEMAI
FILTRAKBRANDT
FILTROS TURBO
FLEETGUARD
FRAM
GARDNER DENVER
INGERSOLL RAND
KELTEC TECHNOLAB
KOBELCO
KSI
LUBER-FINER
MAHLE
and 38 more
