960478056 DRILLTECH Replacement Part
960478056 is a DRILLTECH compressor part number. In the Compressor Parts Finder database, DRILLTECH 960478056 cross-references to OCP AF840-004, an air filter, fitted to 4 listed compressor models.
DRILLTECH 960478056 cross-reference details
- Brand
- DRILLTECH
- Searched part number
- 960478056
- Matched part number
- 960478056
- OCP replacement SKU
- AF840-004
- Keltec / alternative SKU
- KC840-004
- Product type
- Air Filter
Compressor models this part fits
DRILLTECH 960478056 / OCP AF840-004 is listed for the following compressors.
- ELGI—DS900-350 / KTA1150C CUMMINS / 24,6 BAR
- ELGI—DT450-150 / 6BTA CUMMINS / 10,5 BAR
- GARDNER DENVER—SP1200CAT / Caterpillar
- GARDNER DENVER—SP600 / CUMNT855

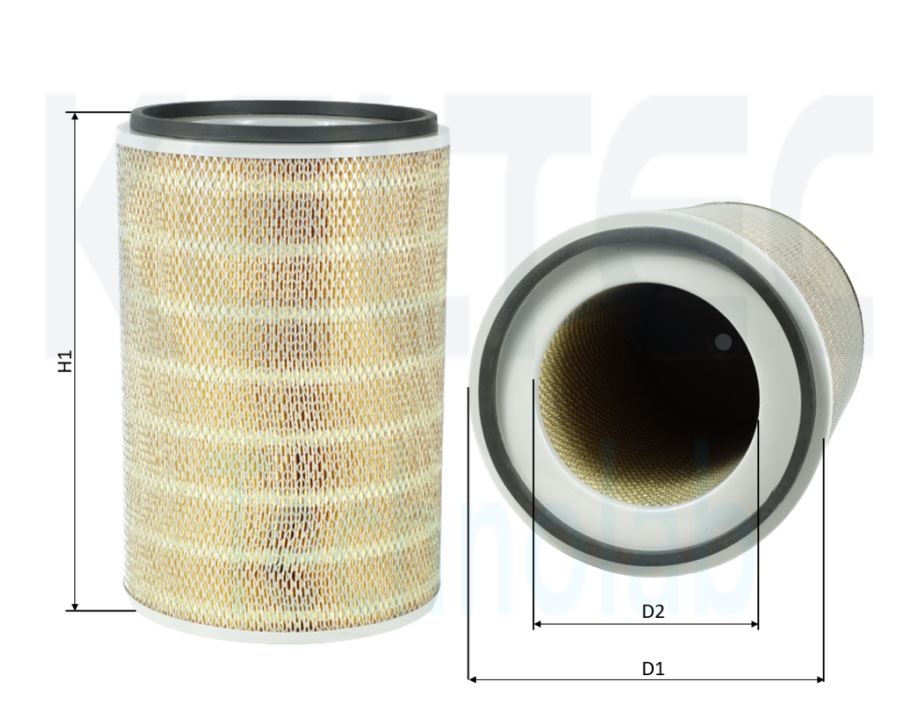

Technical specifications
Dimensions and media data for the OCP replacement of DRILLTECH 960478056.
- D1 outer diameter
- 282 mm (11.1 in)
- D2 diameter
- 171 mm (6.73 in)
- D3 diameter
- 17 mm (0.67 in)
- H1 height
- 419 mm (16.5 in)
- H2 height
- 406 mm (15.98 in)
This part also replaces
The same OCP replacement covers these OEM codes as well as DRILLTECH 960478056.
AIR MAZE
ATLAS COPCO
BALDWIN FILTERS
COMPAIR-DEMAG
CONSOLIDATED PNEUM.
CPT
CREYSSENSAC
ECOAIR
ELGI
ENGEMAI
FILTRAKBRANDT
FILTROS TURBO
FINN FILTER
FRAM
GARDNER DENVER
GRIMMER SCHMIDT
HITACHI
and 90 more
