3003104068 EDMAC Replacement Part

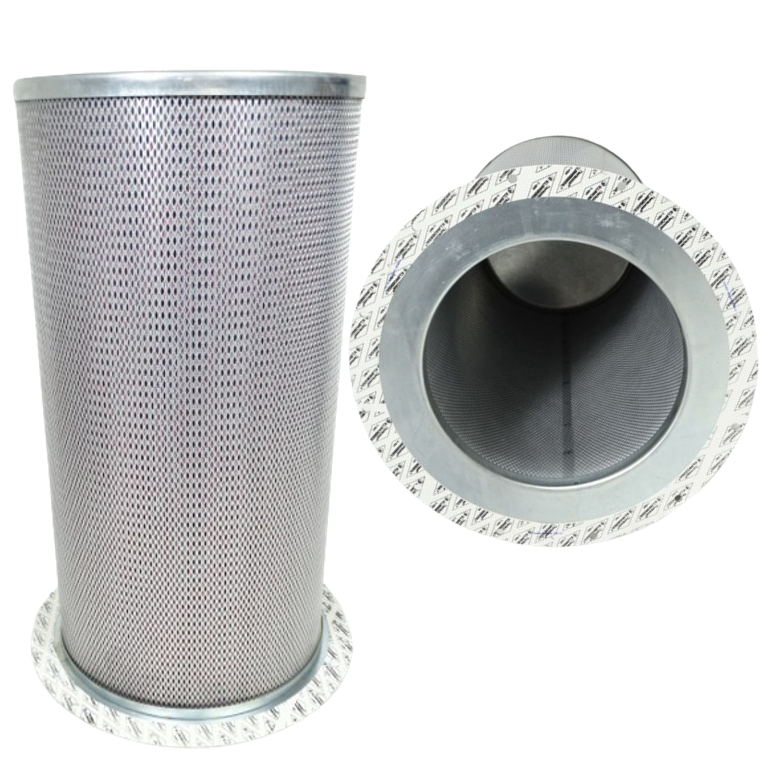

3003104068 is an EDMAC compressor part number. In the Compressor Parts Finder database, EDMAC 3003104068 cross-references to OCP OS3000-005P, an air/oil separator, fitted to 8 listed compressor models.
EDMAC 3003104068 cross-reference details
- Brand
- EDMAC
- Searched part number
- 3003104068
- Matched part number
- 3003104068
- OCP replacement SKU
- OS3000-005P
- Keltec / alternative SKU
- KV3000-005P
- Product type
- Air/Oil Separator
Compressor models this part fits
EDMAC 3003104068 / OCP OS3000-005P is listed for the following compressors.
- SULLAIR—32/25-400 / 200 HP
- SULLAIR—32/25-500 / 200 HP
- SULLAIR—32/25-600 / 200 HP
- SULLAIR—RSVS25
- SULLAIR—RSVS32
- SULLAIR—VS25 USA VACCUM PUMP
- SULLAIR—VS32-150 USA VACCUM PUMP / 150 HP
- SULLAIR—VS32-200 USA VACUUM PUMP / 200 HP
Technical specifications
Dimensions and media data for the OCP replacement of EDMAC 3003104068.
- D1 outer diameter
- 485 mm (19.09 in)
- D2 diameter
- 590 mm (23.23 in)
- D3 diameter
- 400 mm (15.75 in)
- H1 height
- 922 mm (36.3 in)
- H2 height
- 920 mm (36.22 in)
This part also replaces
The same OCP replacement covers these OEM codes as well as EDMAC 3003104068.
