3004681050 EDMAC Replacement Part

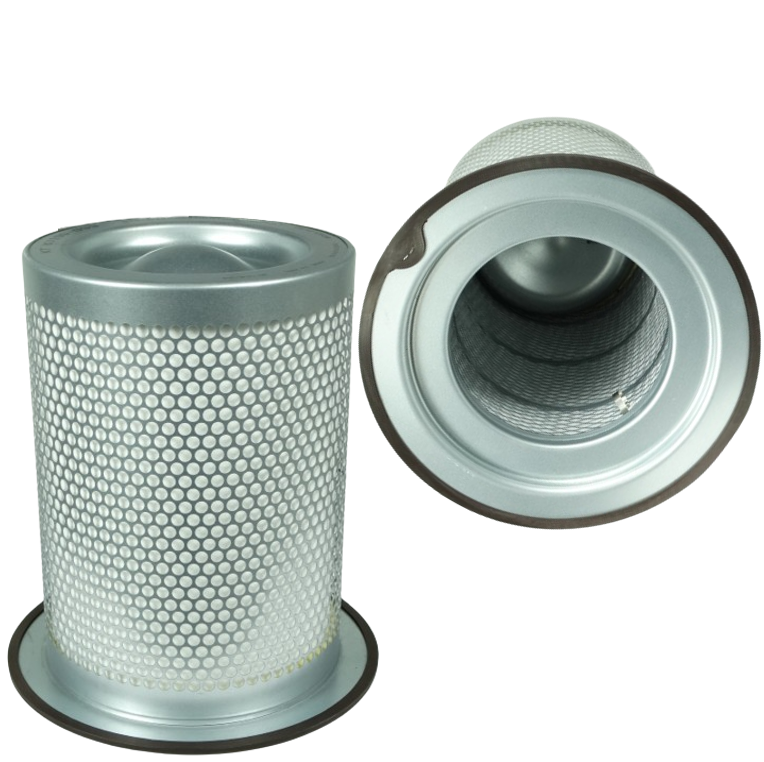

3004681050 is an EDMAC compressor part number. In the Compressor Parts Finder database, EDMAC 3004681050 cross-references to OCP OS190-099, an air/oil separator, fitted to 19 listed compressor models.
EDMAC 3004681050 cross-reference details
- Brand
- EDMAC
- Searched part number
- 3004681050
- Matched part number
- 3004681050
- OCP replacement SKU
- OS190-099
- Keltec / alternative SKU
- KV190-099
- Product type
- Air/Oil Separator
Compressor models this part fits
EDMAC 3004681050 / OCP OS190-099 is listed for the following compressors.
- COMPAIR—LB75-10A / CN20150080001 / 2015
- GARDNER DENVER—ESM55 V4 / GD 6G / ZS1219998 / 75HP / 50HZ / 7,5/13BAR / 02/2022>
- GARDNER DENVER—ESM55 V4 / GD 6G / ZS1219998 / 75HP / 60HZ / 7,5/10BAR / 02/2022>
- GARDNER DENVER—ESM55 V4 / GD NG / ZS1219998 / 75HP / 60HZ / 13BAR / 02/2022>
- GARDNER DENVER—ESM55 V4 / ZS1215759 / 75 / 12/2020>
- GARDNER DENVER—ESM75 V4 / GD6 G / ZS1219998 / 100 / 60 / 7,5/9/13 / 02/2022>
- GARDNER DENVER—ESM75 V4 / GD6 G / ZS1219998 / 100HP / 50HZ / 7,5/10/13BAR / 02/2022>
- GARDNER DENVER—ESM75 V4 / ZS1215759 / 100HP / 50HZ / 12/2020>
- GARDNER DENVER—ESM75E V4 / GD8 G0 / ZS1219998 / 100HP / 50HZ / 7,5/10BAR / 02/2022>
- GARDNER DENVER—L75F-7
- GARDNER DENVER—L75F-7,5A V2 / CD10028244001 / 100HP / abr/17/
- GARDNER DENVER—VS55 V4 / GD 6G / ZS1219998 / 75HP / 50hz / 7,5/13BAR / 02/2022>
- GARDNER DENVER—VS55 V4 / GD 6G / ZS1219998 / 75HP / 60hz / 7,5/10BAR / 02/2022>
- GARDNER DENVER—VS55 V4 / GD NG / ZS1219998 / 75HP / 60hz / 13BAR / 02/2022>
- GARDNER DENVER—VS55 V4 / ZS1215759 / 75 / 12/2020>
- GARDNER DENVER—VS75 V4 / GD6 G / ZS1219998 / 100HP / 50hz / 7,5/10/13BAR / 02/2022>
- GARDNER DENVER—VS75 V4 / GD6 G / ZS1219998 / 100HP / 60hz / 7,5/9/13BAR / 02/2022>
- GARDNER DENVER—VS75 V4 / ZS1215759 / 100HP / 50HZ / 12/2020>
- GARDNER DENVER—VS75-13A V4 / A34905774 / 2021
Technical specifications
Dimensions and media data for the OCP replacement of EDMAC 3004681050.
- D1 outer diameter
- 218 mm (8.58 in)
- D2 diameter
- 285 mm (8.58 in)
- D3 diameter
- 156 mm (6.14 in)
- H1 height
- 307 mm (12.09 in)
- H2 height
- 305 mm (12.01 in)
- GTIN
- 8721606860899
This part also replaces
The same OCP replacement covers these OEM codes as well as EDMAC 3004681050.
