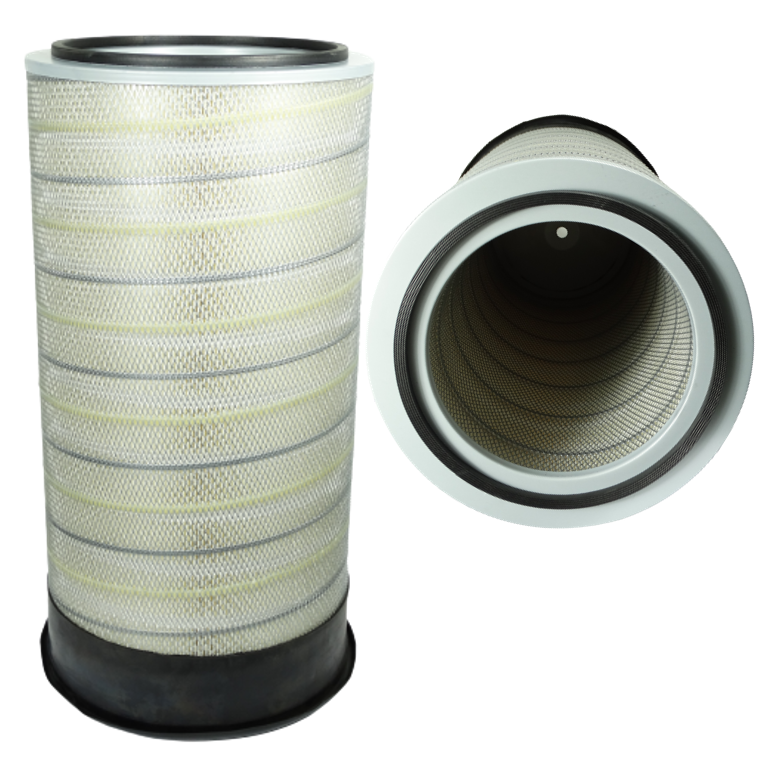

AF25187 FLEETGUARD Replacement Part
AF25187 is a FLEETGUARD compressor part number. In the Compressor Parts Finder database, FLEETGUARD AF25187 cross-references to OCP AF485-012, an air filter, fitted to 3 listed compressor models.
FLEETGUARD AF25187 cross-reference details
- Brand
- FLEETGUARD
- Searched part number
- AF25187
- Matched part number
- AF25187
- OCP replacement SKU
- AF485-012
- Keltec / alternative SKU
- KA485-012
- Product type
- Air Filter
Compressor models this part fits
FLEETGUARD AF25187 / OCP AF485-012 is listed for the following compressors.
- INGERSOLL RAND—XHP1070WCAT / CAT3406
- INGERSOLL RAND—XHP900WCAT / CAT3406 / 24 BAR
- INGERSOLL RAND—XP600
Technical specifications
Dimensions and media data for the OCP replacement of FLEETGUARD AF25187.
- D1 outer diameter
- 371 mm (14.61 in)
- D2 diameter
- 351 mm (13.82 in)
- D3 diameter
- 241 mm (9.49 in)
- D4 diameter
- 22.5 mm (0.89 in)
- H1 height
- 690 mm (27.17 in)
- H2 height
- 680 mm (26.77 in)
This part also replaces
The same OCP replacement covers these OEM codes as well as FLEETGUARD AF25187.
