CA10028 FRAM Replacement Part

FRAM CA10028 cross-reference details

Brand

FRAM

Searched part number

CA10028

Matched part number

CA10028

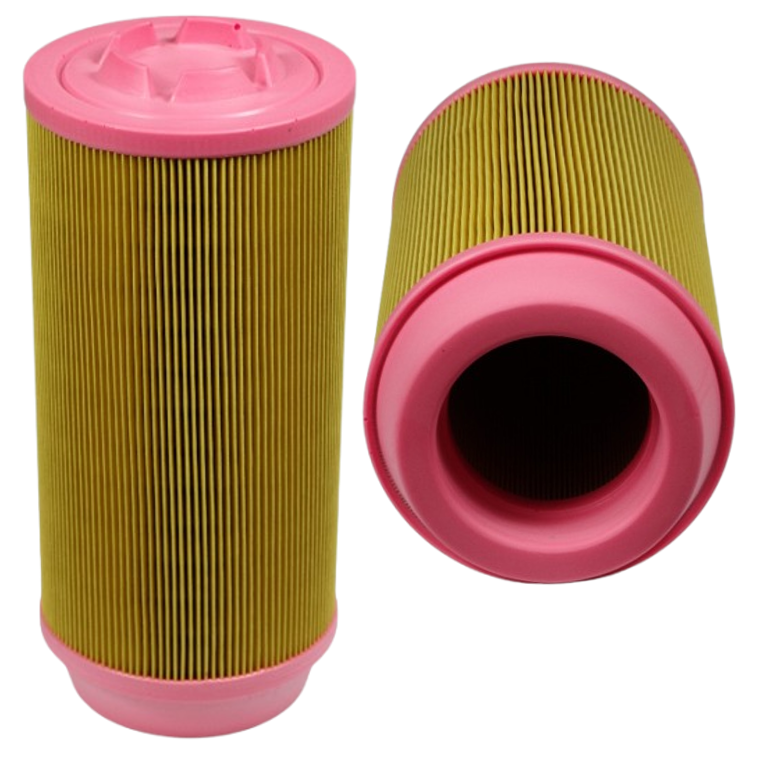

OCP replacement SKU

AF340-023

Keltec / alternative SKU

KA340-023

Product type

Air Filter

Compressor models this part fits

FRAM CA10028 / OCP AF340-023 is listed for the following compressors.

• ATLAS COPCO—/ Jan/2012> / kubota D905
• ATLAS COPCO—XA40
• ATLAS COPCO—XAHS38KD / KUBOTA V1505
• ATLAS COPCO—XAS37KD / Oct/2007> / kubota D1105
• ATLAS COPCO—XAS48KD / APP806.000> / KUBOTA D902
• BOGE—S 16 8/10/13 bar 11,0 kW
• BOGE—S 20 8/10/13 bar 15,0 kW
• BOGE—S 24 8/10/13 bar 18,5 kW
• BOGE—S 30 8/10/13 bar 22,0 kW
• BOGE—SD 20 8/10/13 bar 15,0 kW
• CHICAGO PNEUMATIC—CPS-100 / APP806.000> / KUBOTA 3CIL D902 / 7 BAR
• CHICAGO PNEUMATIC—CPS-90 Old / DEUTZ / 7 BAR
• ELGI—E15 / 20 HP
• ELGI—EG11 GLOBAL SERIES / 15 HP / 7/8/10/12 BAR / Jan/2012>
• ELGI—EG15 GLOBAL SERIES / 20 HP / 7/8/10/12 BAR / Jan/2012>
• ELGI—EG18 GLOBAL SERIES / 25 HP / 10 E 12 BAR / Jan/2012>
• ELGI—EG22 GLOBAL SERIES / 30 HP / 12 BAR / Jan/2012>
• KAESER—ASV-40 vacuum screw
• KAESER—ASV-60 vacuum screw
• KAESER—BSV-100 vacuum scre
• KAESER—BSV-80 vacuum scre
• KAESER—CSV-125 vacuum screw
• KAESER—CSV-150 vacuum screw
• KAESER—M20
• KAESER—M21
• KAESER—M22
• KAESER—M24
• KAESER—M25
• KAESER—M26
• KAESER—M31
• KAESER—M43
• KAESER—M50
• KAESER—M52

Technical specifications

Dimensions and media data for the OCP replacement of FRAM CA10028.

D1 outer diameter

115 mm (4.53 in)

D2 diameter

67 mm (2.64 in)

H1 height

252 mm (9.92 in)

H2 height

220 mm (8.66 in)

GTIN

8721606869441

This part also replaces

The same OCP replacement covers these OEM codes as well as FRAM CA10028.

and 9 more
