040050025 HANDE Replacement Part

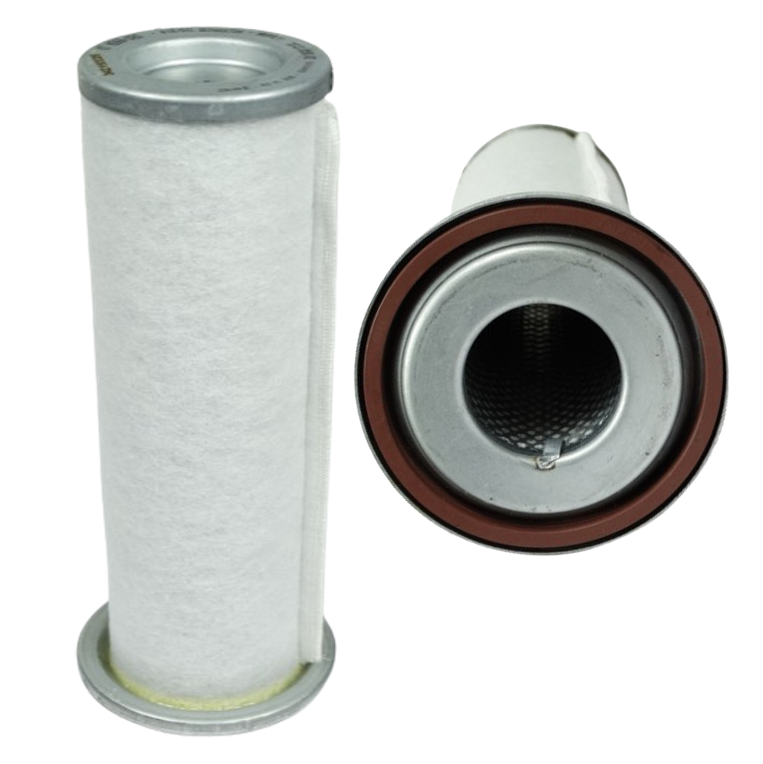

040050025 is a HANDE compressor part number. In the Compressor Parts Finder database, HANDE 040050025 cross-references to OCP OS60-026, an air/oil separator, fitted to 3 listed compressor models.
HANDE 040050025 cross-reference details
- Brand
- HANDE
- Searched part number
- 040050025
- Matched part number
- 040050025
- OCP replacement SKU
- OS60-026
- Keltec / alternative SKU
- KD60-026
- Product type
- Air/Oil Separator
Compressor models this part fits
HANDE 040050025 / OCP OS60-026 is listed for the following compressors.
- ATLAS COPCO—GA10SP / Feb/1995> / 15 HP / 7/8,5/10/12 BAR
- ATLAS COPCO—GA5SP / Feb/1995> / 7,5 HP / 7/8,5/10/12 BAR
- ATLAS COPCO—GA7SP / Feb/1995> / 10 HP / 7/8,5/10/12 BAR
Technical specifications
Dimensions and media data for the OCP replacement of HANDE 040050025.
- D1 outer diameter
- 105.5 mm (4.15 in)
- D2 diameter
- 79 mm (3.11 in)
- D3 diameter
- 44.5 mm (1.75 in)
- D4 diameter
- 9 mm (0.35 in)
- H1 height
- 290 mm (11.42 in)
- GTIN
- 8721606861926
This part also replaces
The same OCP replacement covers these OEM codes as well as HANDE 040050025.
