531B0100H02 JOHNSON CONTROLS Replacement Part

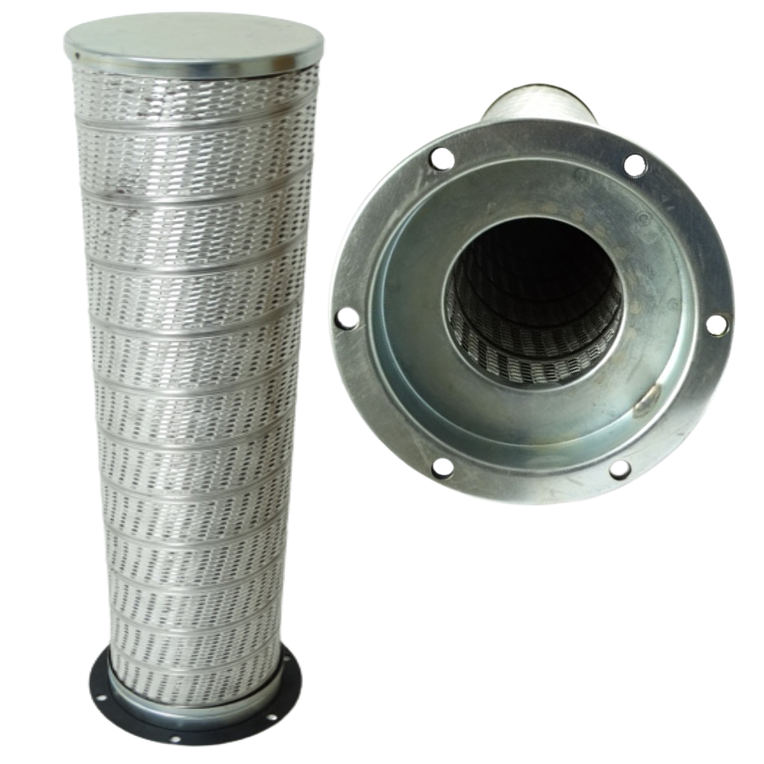

531B0100H02 is a JOHNSON CONTROLS compressor part number. In the Compressor Parts Finder database, JOHNSON CONTROLS 531B0100H02 cross-references to OCP OF890-018P, an oil filter.
JOHNSON CONTROLS 531B0100H02 cross-reference details
- Brand
- JOHNSON CONTROLS
- Searched part number
- 531B0100H02
- Matched part number
- 531B0100H02
- OCP replacement SKU
- OF890-018P
- Keltec / alternative SKU
- KL890-018P
- Product type
- Oil Filter
Technical specifications
Dimensions and media data for the OCP replacement of JOHNSON CONTROLS 531B0100H02.
- D1 outer diameter
- 193 mm (7.6 in)
- D2 diameter
- 152.4 mm (6 in)
- D3 diameter
- 88.9 mm (3.5 in)
- H1 height
- 749.3 mm (29.5 in)
- Media material
- Fiberglass
- Service life *
- 8000 h
* Estimated figure for a complete service: air filter, separator, valves and the matching OCP lubricant (OCP 4000 = 4,000 h).
This part also replaces
The same OCP replacement covers these OEM codes as well as JOHNSON CONTROLS 531B0100H02.
