56010198376 KAISHAN Replacement Part

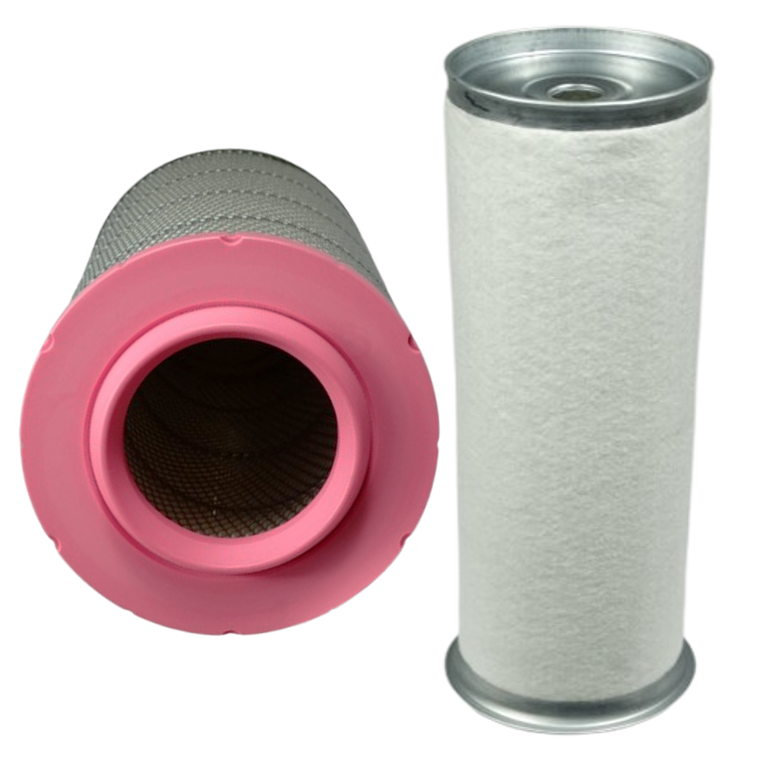

56010198376 is a KAISHAN compressor part number. In the Compressor Parts Finder database, KAISHAN 56010198376 cross-references to OCP AF750-051, an air filter, fitted to 8 listed compressor models.
KAISHAN 56010198376 cross-reference details
- Brand
- KAISHAN
- Searched part number
- 56010198376
- Matched part number
- 56010198376
- OCP replacement SKU
- AF750-051
- Keltec / alternative SKU
- KC750-051
- Product type
- Air Filter
Compressor models this part fits
KAISHAN 56010198376 / OCP AF750-051 is listed for the following compressors.
- CHICAGO PNEUMATIC—CPC-40 / CNK> / 40 HP / 7/10/13 BAR
- CHICAGO PNEUMATIC—CPC-50 / CNK> / 50 HP / 7/10/13 BAR
- CHICAGO PNEUMATIC—CPC-60 / CNK> / 60 HP / 7/10/13 BAR
- CHICAGO PNEUMATIC—CPC-75 / CNK> / 75 HP / 7/10/13 BAR
- CHICAGO PNEUMATIC—CPVR-60 / CNK / 2010 / 60 HP
- CHICAGO PNEUMATIC—CPVS-40 / CNK> / 40 HP
- CHICAGO PNEUMATIC—CPVS-50 / CNK> / 50 HP
- CHICAGO PNEUMATIC—CPVS-60 / CNK> / 60 HP
Technical specifications
Dimensions and media data for the OCP replacement of KAISHAN 56010198376.
- D1 outer diameter
- 200 mm
- D2 diameter
- 198 mm
- D3 diameter
- 102 mm
- H1 height
- 374 mm
- H2 height
- 364 mm
This part also replaces
The same OCP replacement covers these OEM codes as well as KAISHAN 56010198376.
