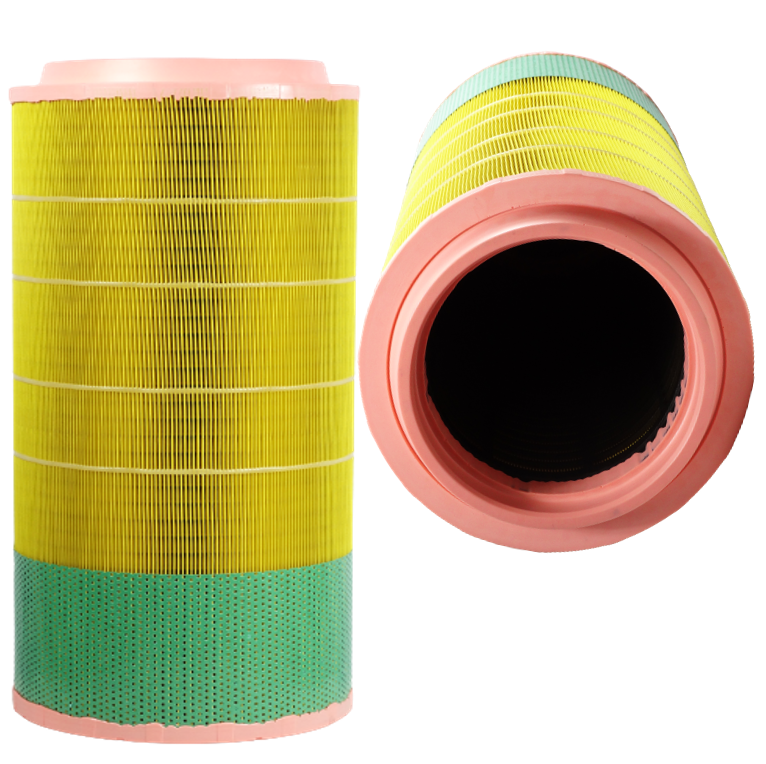

200209 KINZO Replacement Part
200209 is a KINZO compressor part number. In the Compressor Parts Finder database, KINZO 200209 cross-references to OCP AF1130-022, an air filter, fitted to 15 listed compressor models.
KINZO 200209 cross-reference details
- Brand
- KINZO
- Searched part number
- 200209
- Matched part number
- 200209
- OCP replacement SKU
- AF1130-022
- Keltec / alternative SKU
- KA1130-022
- Product type
- Air Filter
Compressor models this part fits
KINZO 200209 / OCP AF1130-022 is listed for the following compressors.
- ATLAS COPCO—G200 / 2.012> / 275 HP
- ATLAS COPCO—G250 (W) / 2.012> / 325 HP
- INGERSOLL RAND—H200 / 200 HP / 60 Hz / 08.2021>
- INGERSOLL RAND—HH200 / 200 HP / 60 Hz / 08.2021>
- INGERSOLL RAND—L200 / 200 HP / 60 Hz / 08.2021>
- INGERSOLL RAND—R132N,IE HD AIR / 18306928> / 175 HP / 80446057 / 2010
- INGERSOLL RAND—R160N,IE HD AIR / 18307165> / 225 HP / 80446057 / 2010
- INGERSOLL RAND—R160NA HD AIR / 18306928> / 225 HP / 2010
- INGERSOLL RAND—SH132 / 132 kW / 50 Hz / 08.2021>
- INGERSOLL RAND—SH150 / 150 kW / 50 Hz / 08.2021>
- INGERSOLL RAND—SIERRA H200
- INGERSOLL RAND—SL132 / 132 kW / 50 Hz / 08.2021>
- INGERSOLL RAND—SL150 / 150 kW / 50 Hz / 08.2021>
- INGERSOLL RAND—SM132 / 132 kW / 50 Hz / 08.2021>
- INGERSOLL RAND—SM150 / 150 kW / 50 Hz / 08.2021>
Technical specifications
Dimensions and media data for the OCP replacement of KINZO 200209.
- D1 outer diameter
- 281 mm (11.06 in)
- D2 diameter
- 187 mm (7.36 in)
- H1 height
- 628 mm (24.72 in)
- H2 height
- 587 mm (23.11 in)
- Media construction
- Pleated
- Media material
- Cellulose
- GTIN
- 8721606869076
This part also replaces
The same OCP replacement covers these OEM codes as well as KINZO 200209.
