KS-L-1140 KSI Replacement Part

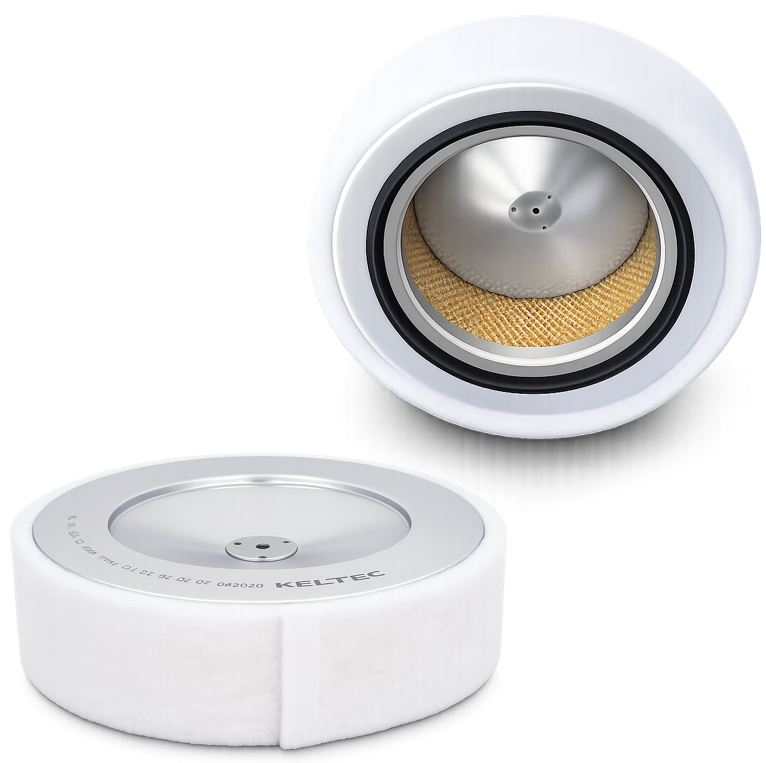

KS-L-1140 is a KSI compressor part number. In the Compressor Parts Finder database, KSI KS-L-1140 cross-references to OCP AF200-071, an air filter, fitted to 16 listed compressor models.
KSI KS-L-1140 cross-reference details
- Brand
- KSI
- Searched part number
- KS-L-1140
- Matched part number
- KS-L-1140
- OCP replacement SKU
- AF200-071
- Keltec / alternative SKU
- KC200-071
- Product type
- Air Filter
Compressor models this part fits
KSI KS-L-1140 / OCP AF200-071 is listed for the following compressors.
- ELGI—EG22P
- ELGI—EG26
- ELGI—EG30 / 40HP
- ELGI—EG37 / 50HP
- ELGI—EG45 / 60HP
- KAESER—BSD-40 versão 2 / 30 (KW) / 8-11-15 (BAR) / >06/2004
- KAESER—BSD-40 versão 3 / 30 (KW) / 8-11-15 (BAR) / >07/2013
- KAESER—BSD-50 versão 2 / 37 (KW) / 8-11-15 (BAR) / >06/2004
- KAESER—BSD-50 versão 3 / 37 (KW) / >07/2013
- KAESER—BSD-60 versão 2 / 45 (KW) / 8-11-15 (BAR) / >06/2004
- KAESER—BSD-60 versão 3 / 45 (KW) / >07/2013
- KAESER—BSD-62 / 8-11-15 (BAR)
- KAESER—BSD-72 / 8-11-15 (BAR)
- KAESER—BSD-81T / 8-11-15 (BAR)
- KAESER—BSD-83 VERSÃO 3
- KAESER—SFC-37 / 37 (KW) / 8-11-15 (BAR)
Technical specifications
Dimensions and media data for the OCP replacement of KSI KS-L-1140.
- D1 outer diameter
- 327 mm (12.87 in)
- D2 diameter
- 216 mm (8.5 in)
- D3 diameter
- 11 mm (0.43 in)
- H1 height
- 108 mm (4.25 in)
- H2 height
- 95 mm (3.74 in)
- GTIN
- 8721606869281
This part also replaces
The same OCP replacement covers these OEM codes as well as KSI KS-L-1140.
