2110146000000 LIDA Replacement Part
2110146000000 is a LIDA compressor part number. In the Compressor Parts Finder database, LIDA 2110146000000 cross-references to OCP OS320-008, an air/oil separator, fitted to 13 listed compressor models.
LIDA 2110146000000 cross-reference details
- Brand
- LIDA
- Searched part number
- 2110146000000
- Matched part number
- 2110146000000
- OCP replacement SKU
- OS320-008
- Keltec / alternative SKU
- KV320-008
- Product type
- Air/Oil Separator
Compressor models this part fits
LIDA 2110146000000 / OCP OS320-008 is listed for the following compressors.
- DOOSAN—10/125 / CUMMINS / F3.8 HP / 9BAR / 01/2021>
- DOOSAN—14/115 / CUMMINS / F3.8 HP / 9BAR / 01/2021>
- DOOSAN—7/125 / CUMMINS / F3.8 HP / 9BAR / 01/2021>
- INGERSOLL RAND—HP375 / CUMMINS
- INGERSOLL RAND—HP375 / ISUZU
- INGERSOLL RAND—HP375 / JOHN DEERE
- INGERSOLL RAND—HP425 / CUMMINS
- INGERSOLL RAND—HP425AWIR / ISUZU
- INGERSOLL RAND—HP425AWIR / JOHN DEERE
- INGERSOLL RAND—P425WIR / 4IRD5AE
- INGERSOLL RAND—P600PU/SD2T
- INGERSOLL RAND—P600WD2T / deutz
- INGERSOLL RAND—UHP400SCU / cummins
Technical specifications

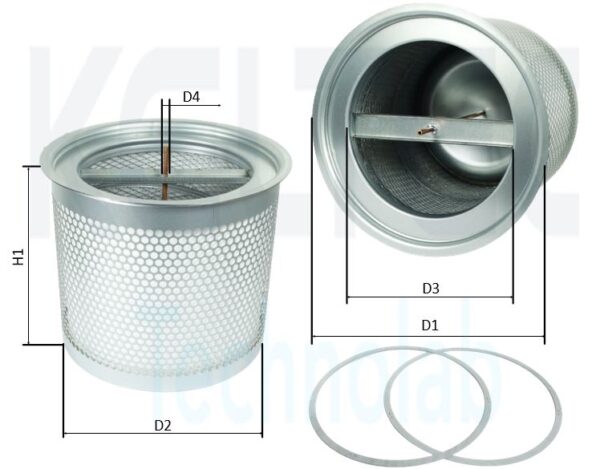

Dimensions and media data for the OCP replacement of LIDA 2110146000000.
- D1 outer diameter
- 274 mm (10.79 in)
- D2 diameter
- 298 mm (11.73 in)
- D3 diameter
- 208 mm (8.19 in)
- D4 diameter
- 6 mm (0.24 in)
- H1 height
- 249 mm (9.8 in)
- Media construction
- Wrapped
- Media material
- Fiberglass
- GTIN
- 8721606861292
This part also replaces
The same OCP replacement covers these OEM codes as well as LIDA 2110146000000.
