3402 MEGAMICRON Replacement Part

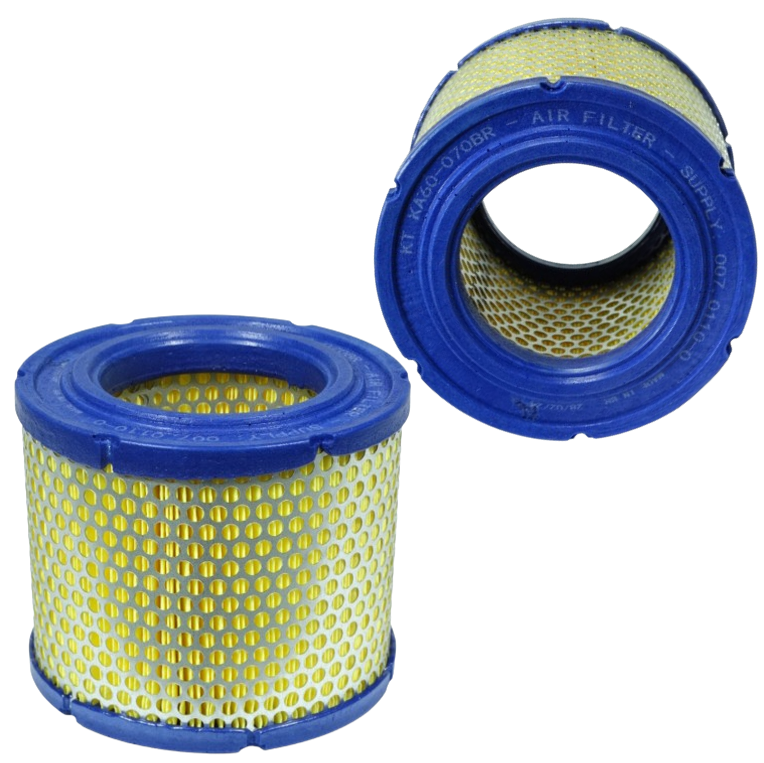

3402 is a MEGAMICRON compressor part number. In the Compressor Parts Finder database, MEGAMICRON 3402 cross-references to OCP AF60-070, an air filter, fitted to 19 listed compressor models.
MEGAMICRON 3402 cross-reference details
- Brand
- MEGAMICRON
- Searched part number
- 3402
- Matched part number
- 3402
- OCP replacement SKU
- AF60-070
- Keltec / alternative SKU
- KA60-070
- Product type
- Air Filter
Compressor models this part fits
MEGAMICRON 3402 / OCP AF60-070 is listed for the following compressors.
- KR XINRAN—XR-22A / 30 / 7 / 2009
- METALPAN—POWER/TOTAL PACK025 / 25 HP / 110/131/160/181 PSI
- METALPAN—POWER/TOTAL PACK030 / 30 HP / 110/131/160/181 PSI
- METALPAN—POWER/TOTAL PACK040 / 40 HP / 110/131/160/181 PSI
- METALPAN—POWER/TOTAL PACKFLEX030 / 30 HP / 110/131/160/181 PSI
- METALPAN—POWER/TOTAL PACKFLEX040 / 40 HP / 110/131/160/181 PSI
- METALPAN—ROTORPLUS025 / 25 HP / 110/131/160/181 PSI
- METALPAN—ROTORPLUS030 / 30 HP / 110/131/160/181 PSI
- METALPAN—ROTORPLUS040 / 40 HP / 110/131/160/181 PSI
- SCHULZ—SRP2005 / 5 HP / 5 HP / 110/150/175 HP
- SCHULZ—SRP2008 / 7,5 HP / 7,5 HP / 110/150/175 HP
- SCHULZ—SRP2010 / 10 HP / 10 HP / 110/150/175 HP
- SCHULZ—SRP2015 / 15 HP / 15 HP / 110/150/175 HP
- SCHULZ—SRP2020 / 20 HP / 20 HP / 110/150/175 HP
- SCHULZ—SRP2025 / 25 HP / 25 HP / 110/150/175 HP
- SCHULZ—SRP2030 / 30 HP / 30 HP / 110/150/175 HP
- SCHULZ—SRP3020 / 20 HP / 20 HP / 110/150/175 HP
- SCHULZ—SRP3020E / 20 HP / 20 HP / 110/150/175 HP
- SCHULZ—SRP3030 / 30 HP / 110/150/175 HP
Technical specifications
Dimensions and media data for the OCP replacement of MEGAMICRON 3402.
- D1 outer diameter
- 150 mm (5.91 in)
- D2 diameter
- 85 mm (3.35 in)
- H1 height
- 125 mm (4.92 in)
This part also replaces
The same OCP replacement covers these OEM codes as well as MEGAMICRON 3402.
