3560 MEGAMICRON Replacement Part
3560 is a MEGAMICRON compressor part number. In the Compressor Parts Finder database, MEGAMICRON 3560 cross-references to OCP OS195-023, an air/oil separator, fitted to 5 listed compressor models.
MEGAMICRON 3560 cross-reference details
- Brand
- MEGAMICRON
- Searched part number
- 3560
- Matched part number
- 3560
- OCP replacement SKU
- OS195-023
- Keltec / alternative SKU
- KV195-023
- Product type
- Air/Oil Separator
Compressor models this part fits
MEGAMICRON 3560 / OCP OS195-023 is listed for the following compressors.
- ATLAS COPCO—GA55 2nd Gen / 551.001 À 551.999 / 75 HP / 7/8,5/10/12 BAR
- ATLAS COPCO—GA75 2nd Gen / 771.001 À 771.999 / 100 HP
- ATLAS COPCO—GA90 C 2nd Gen / 771.001 À 771.999 / 125 HP / 7/8,5/10/12 BAR
- CHICAGO PNEUMATIC—S-16/100H,HH,L,M / 100 HP / 7/8,5/10/12 BAR
- CHICAGO PNEUMATIC—S-16/75H,HH,L,M / 75 HP / 7/8,5/10/12 BAR

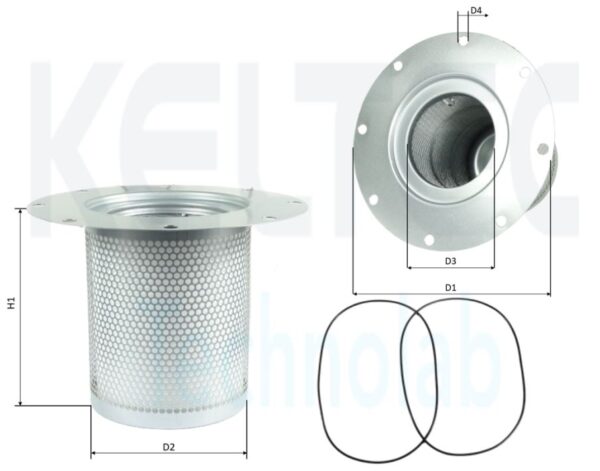

Technical specifications
Dimensions and media data for the OCP replacement of MEGAMICRON 3560.
- D1 outer diameter
- 238 mm (9.37 in)
- D2 diameter
- 400 mm (15.75 in)
- D3 diameter
- 177 mm (6.97 in)
- H1 height
- 300 mm (11.81 in)
- GTIN
- 8721606860912
This part also replaces
The same OCP replacement covers these OEM codes as well as MEGAMICRON 3560.
