3764 MEGAMICRON Replacement Part
3764 is a MEGAMICRON compressor part number. In the Compressor Parts Finder database, MEGAMICRON 3764 cross-references to OCP AF495-020, an air filter, fitted to 19 listed compressor models.
MEGAMICRON 3764 cross-reference details
- Brand
- MEGAMICRON
- Searched part number
- 3764
- Matched part number
- 3764
- OCP replacement SKU
- AF495-020
- Keltec / alternative SKU
- KC495-020
- Product type
- Air Filter
Compressor models this part fits
MEGAMICRON 3764 / OCP AF495-020 is listed for the following compressors.
- GARDNER DENVER—ES45 / <2002
- GARDNER DENVER—ES45 FROM 2002 / <2002
- GARDNER DENVER—ES55 / <2002
- GARDNER DENVER—ES55 FROM 2002 / <2002
- GARDNER DENVER—ES75 / <2002
- GARDNER DENVER—ES75 FROM 2002 / <2002
- GARDNER DENVER—ESP110
- GARDNER DENVER—ESP132
- GARDNER DENVER—ESP90
- GARDNER DENVER—VS155 / <2002
- GARDNER DENVER—VS60 / <2002
- GARDNER DENVER—VS60 FROM 2002 / <2002
- SCHULZ—SRP2100 / 100 HP / 100 HP / 110/150/175 HP
- SCHULZ—SRP2150 / 150 HP / 150 HP / 110/150/175 HP
- SCHULZ—SRP3100 GD / 100 HP / 100 HP / 109/131/160 HP
- SCHULZ—SRP3100E / 100 HP / 12/2009←/ 109/131/160 HP
- SCHULZ—SRP3100E / 100HP / 12/2009→ / 109/131/160
- SCHULZ—SRP3100SS GD / 100 HP / 100 HP
- SCHULZ—SRP3150E GD / 150 HP / 109/131/160 PSI

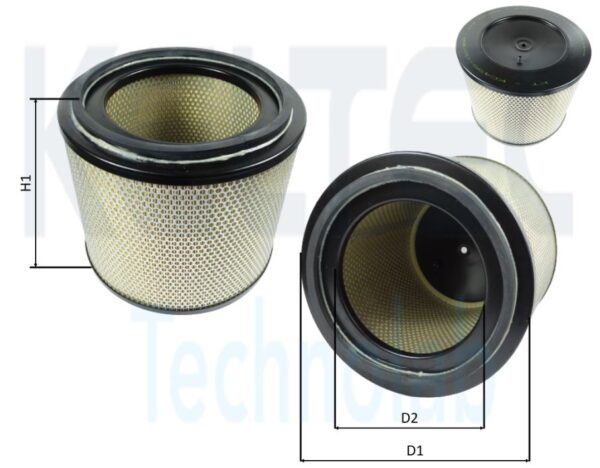

Technical specifications
Dimensions and media data for the OCP replacement of MEGAMICRON 3764.
- D1 outer diameter
- 300 mm (11.81 in)
- D2 diameter
- 191 mm (7.52 in)
- D3 diameter
- 11 mm (0.43 in)
- H1 height
- 260 mm (10.24 in)
- H2 height
- 250 mm (9.84 in)
- G1 thread
- M10 x 1
This part also replaces
The same OCP replacement covers these OEM codes as well as MEGAMICRON 3764.
