S3760S MUCHFLOW Replacement Part
S3760S is a MUCHFLOW compressor part number. In the Compressor Parts Finder database, MUCHFLOW S3760S cross-references to OCP OS1000-068, an air/oil separator, fitted to 26 listed compressor models.
MUCHFLOW S3760S cross-reference details
- Brand
- MUCHFLOW
- Searched part number
- S3760S
- Matched part number
- S3760S
- OCP replacement SKU
- OS1000-068
- Keltec / alternative SKU
- KV1000-068
- Product type
- Air/Oil Separator
Compressor models this part fits
MUCHFLOW S3760S / OCP OS1000-068 is listed for the following compressors.
- KAESER—DSD-100
- KAESER—DSD-125 / >07/2007
- KAESER—DSD-142
- KAESER—DSD-150 / >07/2007
- KAESER—DSD-172 / 90 (KW) / 8-12 (BAR)
- KAESER—DSD-172T / 90 (KW) / 8-12 (BAR)
- KAESER—DSD-175 / 132 (KW) / >07/2007
- KAESER—DSD-202 / 8-11-15 (BAR)
- KAESER—DSD-205
- KAESER—M123.1
- KAESER—M135
- KAESER—M200 / CAT C6.6ACERT / 01/2011>
- KAESER—M250
- KAESER—M270 MB OM501LA TIER3
- KAESER—SFC-110 / 110 (KW) / 10-15 (BAR)
- KAESER—SFC-110ST / 90 (KW) / 8-11-15 (BAR)
- KAESER—SFC-110T / 110 (KW) / 10-15 (BAR)
- KAESER—SFC-132 / 132 (KW) / 8-11-15 (BAR)
- KAESER—SFC-132S / 132 (KW) / 10-15 (BAR)
- KAESER—SFC-132ST / 132 (KW) / 10-15 (BAR)
- KAESER—SFC-75 / 75 (KW) / 9 (BAR)
- KAESER—SFC-75 New / 75 (KW) / 9 (BAR) / 2011>
- KAESER—SFC-75T / 75 (KW) / 9 (BAR)
- KAESER—SFC-90 / 90 (KW) / 10 (BAR)
- KAESER—SFC-90ST / 75 (KW) / 8-11-15 (BAR)
- KAESER—SFC-90T / 90 (KW) / 10 (BAR)

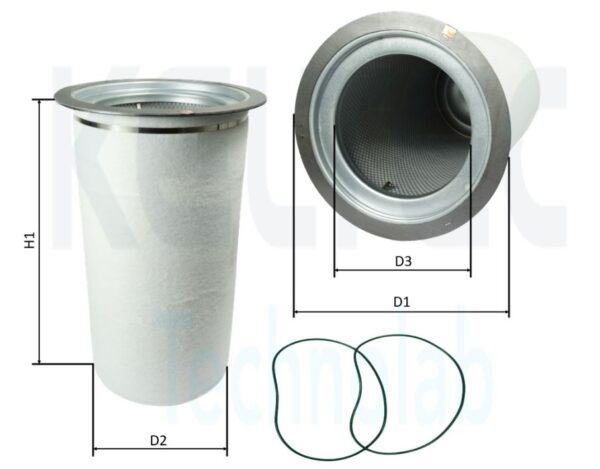

Technical specifications
Dimensions and media data for the OCP replacement of MUCHFLOW S3760S.
- D1 outer diameter
- 273 mm (10.75 in)
- D2 diameter
- 328 mm (10.87 in)
- D3 diameter
- 210 mm (8.27 in)
- H1 height
- 525 mm (20.67 in)
- H2 height
- 522 mm (20.55 in)
This part also replaces
The same OCP replacement covers these OEM codes as well as MUCHFLOW S3760S.
