AF1120-024 OCP Replacement Part

OCP AF1120-024 cross-reference details

Brand

OCP

Searched part number

AF1120-024

Matched part number

AF1120-024

OCP replacement SKU

AF1120-024

Keltec / alternative SKU

KA1120-024

Product type

Air Filter

Compressor models this part fits

OCP AF1120-024 / OCP AF1120-024 is listed for the following compressors.

• ATLAS COPCO—ZH275 / Centrifugal
• ATLAS COPCO—ZR110 / Jun.2007>
• ATLAS COPCO—ZR132 / Jun.2007>
• ATLAS COPCO—ZR145
• ATLAS COPCO—ZR145 / Jun.2007>
• ATLAS COPCO—ZR160VSD With 1 Oil Filter / Jul/2008>
• ATLAS COPCO—ZR160VSD With 2 Oil Filter / Jul/2008>
• ATLAS COPCO—ZR250VSD / AIF093.201> / Nov/2004> / 250 HP / 10 BAR
• ATLAS COPCO—ZR250VSD / BRP075250/093622/093634
• ATLAS COPCO—ZR275FF / BRP069773 / 2008
• ATLAS COPCO—ZR300 New / 500 HP / 10 BAR
• ATLAS COPCO—ZR315VSD / AIF093.201> / Nov/2004> / 315 HP / 10 BAR
• ATLAS COPCO—ZR315VSD / BRP069768 / 2008
• ATLAS COPCO—ZR400 New / 450 HP / 10 BAR
• ATLAS COPCO—ZT110 / 0015.0002.66> / May/2011>
• ATLAS COPCO—ZT132 / 0015.0002.66> / May/2011>
• ATLAS COPCO—ZT145 / 0015.0002.66> / May/2011>
• ATLAS COPCO—ZT160 / 0015.0002.77> / May/2011>
• ATLAS COPCO—ZT160VSD / 0015.0002.67> / May/2011> / 200 HP
• ATLAS COPCO—ZT200 / 0015.0002.77> / May/2011>
• ATLAS COPCO—ZT250 / 0015.0002.77> / May/2011>
• ATLAS COPCO—ZT250VSD / 0015.0002.80> / May/2011> / 250 HP / 10 BAR
• ATLAS COPCO—ZT275 / 0015.0002.77> / May/2011>
• ATLAS COPCO—ZT315VSD / 0015.0002.80> / May/2011> / 315 HP / 10 BAR

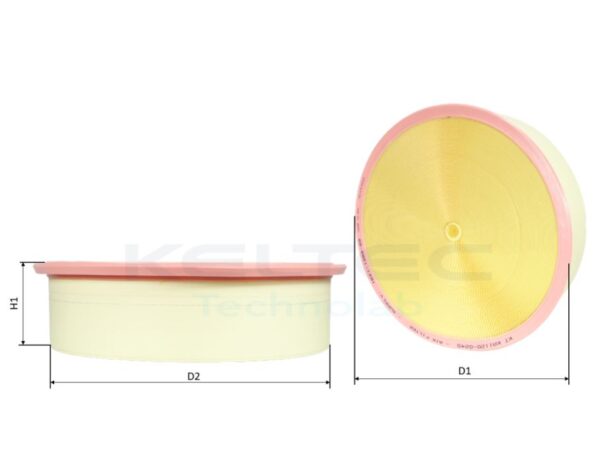

Technical specifications

Dimensions and media data for the OCP replacement of OCP AF1120-024.

D1 outer diameter

600 mm (23.62 in)

D2 diameter

545 mm (21.46 in)

D3 diameter

530 mm (20.87 in)

H1 height

157 mm (6.18 in)

H2 height

147 mm

Media construction

Pleated

GTIN

8721606869069

This part also replaces

The same OCP replacement covers these OEM codes as well as OCP AF1120-024.
