AF4050 OXFIL Replacement Part
AF4050 is an OXFIL compressor part number. In the Compressor Parts Finder database, OXFIL AF4050 cross-references to OCP AF485-015, an air filter, fitted to 12 listed compressor models.
OXFIL AF4050 cross-reference details
- Brand
- OXFIL
- Searched part number
- AF4050
- Matched part number
- AF4050
- OCP replacement SKU
- AF485-015
- Keltec / alternative SKU
- KA485-015
- Product type
- Air Filter
Compressor models this part fits
OXFIL AF4050 / OCP AF485-015 is listed for the following compressors.
- COMPAIR—VS110
- COMPAIR—VS132
- COMPAIR—VS90
- ELGI—EG132 / 175 HP / 05/2013>
- ELGI—EG160 / 200 HP / 03/2007>
- GARDNER DENVER—ESM110 / ZS1089927> / 150 / 03/2018>
- GARDNER DENVER—ESM132 / 175HP
- GARDNER DENVER—ESM140 / ZS1089927> / 190 / 03/2018>
- GARDNER DENVER—ESM90 / ZS1089927> / 120 / 03/2018>
- GARDNER DENVER—VS110 FRAME5 / ZS1089927> / 03/2018>
- GARDNER DENVER—VS132 FRAME5 / ZS1089927> / 03/2018>
- GARDNER DENVER—VS90 FRAME5 / ZS1089927> / 03/2018>

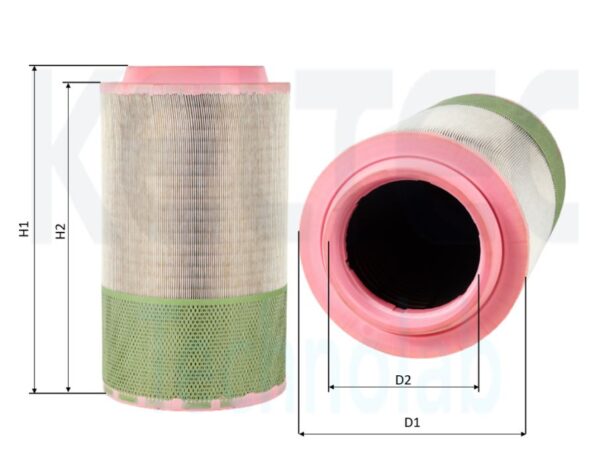

Technical specifications
Dimensions and media data for the OCP replacement of OXFIL AF4050.
- D1 outer diameter
- 265 mm (10.43 in)
- D2 diameter
- 162 mm (6.38 in)
- H1 height
- 479 mm (18.86 in)
- H2 height
- 438 mm (17.24 in)
This part also replaces
The same OCP replacement covers these OEM codes as well as OXFIL AF4050.
AIR SUPPLY
ALCO
ALMIG
ASHIKA
BALDWIN FILTERS
BLUEPRINT
BOSCH
BOSCH(KSN)
CHAMPION
COMLINE
COOPERS
COOPERSFIAAM
DONALDSON
DR!VE+(NEXUS)
FEBI-BILSTEIN
FILFILTER
FILTRON
FILTROS TURBO
FLEETGUARD
GARDNER DENVER
GUD
JAPANPARTS
KELTEC TECHNOLAB
KSKOLBENSCHMIDT
MACO MEUDON
MANN&HUMMEL
MAPCO
MEAT&DORIA
MECAFILTER
MERCEDES BENZ
MOTAQUIP
OCP
PBR
PURFLUX
QUINTONHAZELL
RENNER
ROTAIR
SAMPIYON
and 12 more
