41916 PNEUMOFORE Replacement Part

PNEUMOFORE 41916 cross-reference details

Brand

PNEUMOFORE

Searched part number

41916

Matched part number

41916

OCP replacement SKU

OS265-018

Keltec / alternative SKU

KV265-018

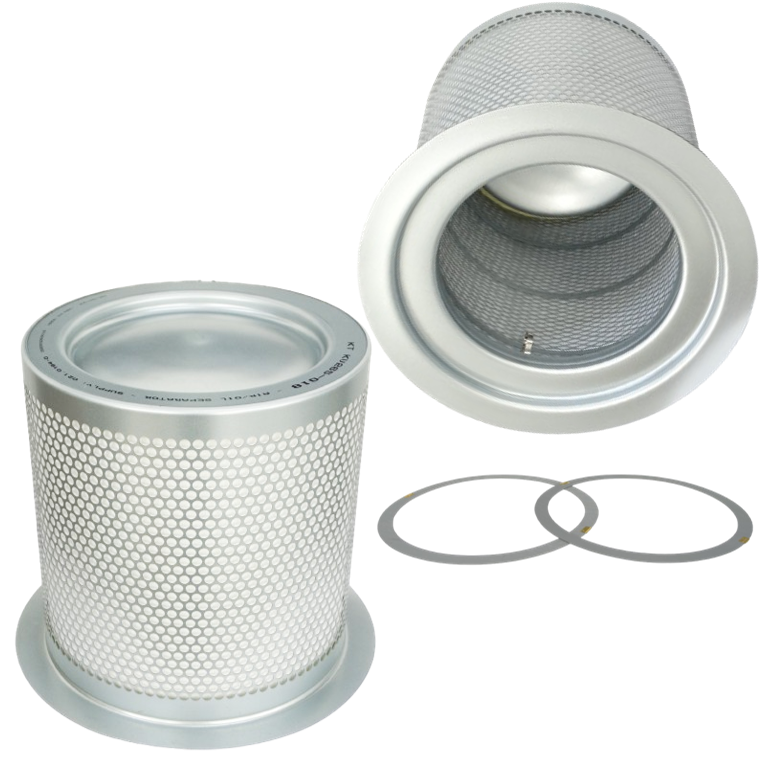

Product type

Air/Oil Separator

Compressor models this part fits

PNEUMOFORE 41916 / OCP OS265-018 is listed for the following compressors.

• AUGUST—100HP
• BUMATEC—BFD75 / 100 HP
• COAIRE—CA55
• DENAIR—DAV55 / 75HP / Jul/25
• DENAIR—DAV75 / 100HP / Jul/25
• ELGI—EG110 / 150 HP / 05/2013>
• ELGI—EG75 / 100 HP / 05/2013>
• ELGI—EG90 / 125 HP / 05/2013>
• FS-CURTIS—SA55 / HP
• HANBELL—AA2-55A
• PUMA—SPS750 / 75HP
• SCHULZ—SRP3100E / 100 HP / 12/2009←/ 109/131/160 HP
• SCHULZ—SRP3100E / 100HP / 12/2009→ / 109/131/160
• SCHULZ—SRP3100FLEX / 100 HP / 12/2009← / 109/131/160 HP
• SCHULZ—SRP3100FLEX / 100HP / 12/2009→ / 109/131/160
• SCHULZ—SRP3125 / 125 HP /12/2009→ / 109/131/160 HP
• SCHULZ—SRP3125FLEX / 125 HP /12/2009→ / 109/131/160 HP
• SCHULZ—SRP4100FLEX / 100 HP / 100 HP
• SCHULZ—SRP4125E(AC) / 125 HP
• SCHULZ—SRP4125FLEX / 125 HP
• SHANGHAI SCR—SCR100D
• SHANGHAI SCR—SCR100DV
• SHANGHAI SCR—SCR75D
• SHANGHAI SCR—SCR75DV
• SHANGHAI SCR—SCR75M
• TUDWEI—SGD75 / 100 / 8 / 2020 / 20100059

Technical specifications

Dimensions and media data for the OCP replacement of PNEUMOFORE 41916.

D1 outer diameter

300 mm (11.81 in)

D2 diameter

355 mm (13.98 in)

D3 diameter

220 mm (8.66 in)

H1 height

305 mm (12.01 in)

Media construction

Pleated+Wrapped

Media material

Fiberglass

GTIN

8721606861117

This part also replaces

The same OCP replacement covers these OEM codes as well as PNEUMOFORE 41916.

and 34 more
