00701360 SCHULZ Replacement Part
00701360 is a SCHULZ compressor part number. In the Compressor Parts Finder database, SCHULZ 00701360 cross-references to OCP AF85-045, an air filter, fitted to 13 listed compressor models.
SCHULZ 00701360 cross-reference details
- Brand
- SCHULZ
- Searched part number
- 00701360
- Matched part number
- 00701360
- OCP replacement SKU
- AF85-045
- Keltec / alternative SKU
- KA85-045
- Product type
- Air Filter
Compressor models this part fits
SCHULZ 00701360 / OCP AF85-045 is listed for the following compressors.
- SCHULZ—SRP2040 / 40 HP / 40 HP / 110/150/175 HP
- SCHULZ—SRP2050 / 50 HP / 50 HP / 110/150/175 HP
- SCHULZ—SRP2060 / 60 HP / 60 HP / 110/150/175 HP
- SCHULZ—SRP2075 / 75 HP / 75 HP / 110/150/175 HP
- SCHULZ—SRP3030 COMPACT / 30 HP / 30 HP
- SCHULZ—SRP3040 / 40 HP
- SCHULZ—SRP3040 COMPACT / 40 HP / 40 HP
- SCHULZ—SRP3040II / 40 HP / 40 HP
- SCHULZ—SRP3050E / 50 HP / 50 HP
- SCHULZ—SRP3060E / 60 HP / 12/2009← / 110/131/160 HP
- SCHULZ—SRP3060E / 60HP / 12/2009→ / 110/131/160
- SCHULZ—SRP3075E / 12/2009← / 75 HP / 75 HP / 109/131/160 HP
- SCHULZ—SRP3075E / 12/2009→ / 75HP / 109/131/160

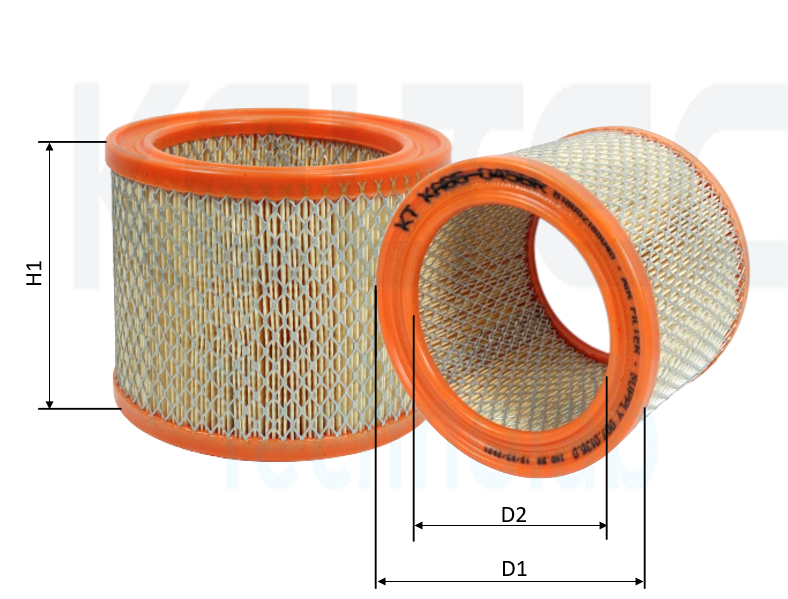

Technical specifications
Dimensions and media data for the OCP replacement of SCHULZ 00701360.
- D1 outer diameter
- 180 mm (7.09 in)
- D2 diameter
- 130 mm (5.12 in)
- H1 height
- 145 mm (5.71 in)
This part also replaces
The same OCP replacement covers these OEM codes as well as SCHULZ 00701360.
