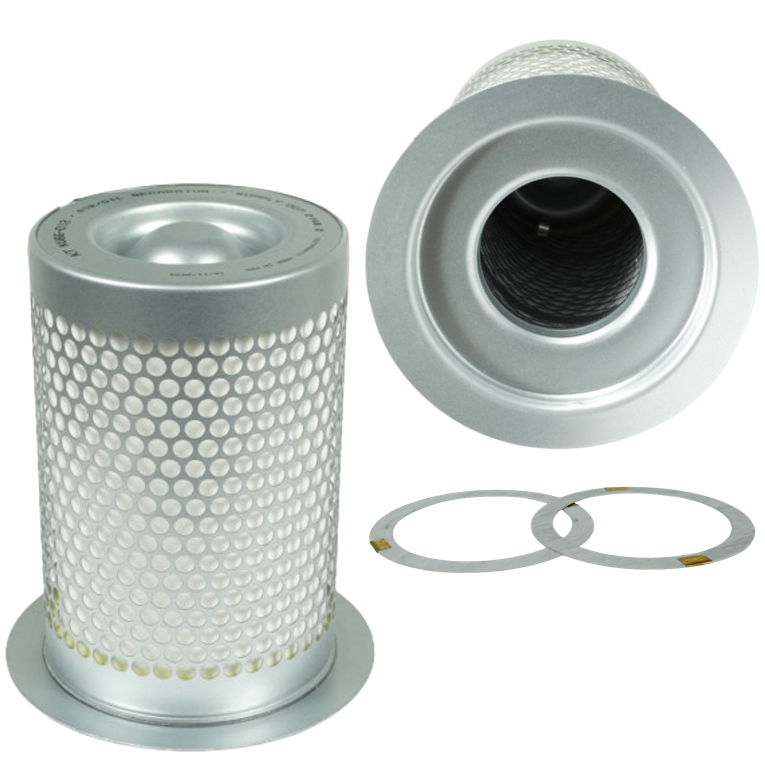

00701481 SCHULZ Replacement Part

SCHULZ 00701481 cross-reference details

Brand

SCHULZ

Searched part number

00701481

Matched part number

00701481

OCP replacement SKU

OS66-012

Keltec / alternative SKU

KV66-012

Product type

Air/Oil Separator

Compressor models this part fits

SCHULZ 00701481 / OCP OS66-012 is listed for the following compressors.

• CHIAPERINI TECHTO—COPA 15 LINHA CINZA/AZUL / 15 HP
• CHIAPERINI TECHTO—COPA 20 LINHA CINZA/AZUL / 20 HP
• CHIAPERINI TECHTO—COPA 30 LINHA CINZA/AZUL (union) / 30 HP
• CHIAPERINI TECHTO—COPA 40 LINHA CINZA/AZUL / 40 HP
• CHIAPERINI TECHTO—SUPREME SD30 / 30 HP
• DENAIR—DAV22 / 30HP / 8,5BAR / Nov/23
• ELGI—DT175-100 / F3M2011 DEUTZ / 7 BAR
• ENNABERT—IVG20A / 15HP / 2023
• FS-CURTIS—SEM20 / 20 HP
• FS-CURTIS—SEM25 / 25 HP
• FS-CURTIS—SEM30 / 30 HP
• HI-TECH SERVE—30A
• HI-TECH SERVE—SE22-AD-8 / 2023
• HI-TECH SERVE—SE22-AD-8 / 8PSI / 2015
• KR XINRAN—XR-22A / 30 / 7 / 2009
• QINGDAO HUITONGXINDA AIR—TSE22 / 16KW
• QINGDAO HUITONGXINDA AIR—XV22/16G
• ROTORCOMP—LGCD15D
• ROTORCOMP—LGCD15L
• SCHULZ—SRP2020 / 20 HP / 20 HP / 110/150/175 HP
• SCHULZ—SRP2025 / 25 HP / 25 HP / 110/150/175 HP
• SCHULZ—SRP2030 / 30 HP / 30 HP / 110/150/175 HP
• SCHULZ—SRP3020 / 20 HP / 20 HP / 110/150/175 HP
• SCHULZ—SRP3020E / 20 HP / 20 HP / 110/150/175 HP
• SCHULZ—SRP3025 / 25 HP / 25 HP / 110/150/175 HP
• SCHULZ—SRP3025E / 25 HP / 25 HP / 110/150/175 HP
• SCHULZ—SRP3030 / 30 HP / 110/150/175 HP
• SCHULZ—SRP3030EFLEX / 30 HP / 30 HP / 109/131/160 HP
• SCHULZ—SRP4020E(ADS-AD) / 20 HP / 20 HP
• SCHULZ—SRP4020E(TS-R) / 20 HP / 20 HP
• SCHULZ—SRP4020FLEX / 20 HP / 20 HP
• SCHULZ—SRP4025E(ADS-AD) / 25 HP / 25 HP
• SCHULZ—SRP4025E(TS-R) / 25 HP / 25 HP
• SCHULZ—SRP4025FLEX / 25 HP / 25 HP
• SCHULZ—SRP4030E(ADS-AD) / 30 HP / 30 HP
• SCHULZ—SRP4030E(TS-R) / 30 HP / 30 HP
• SCHULZ—SRP4030FLEX / 30 HP / 30 HP
• SHANGHAI SCR—SCR20D
• SHANGHAI SCR—SCR20DV
• SHANGHAI SCR—SCR25M
• SHANGHAI SCR—SCR30D
• SHANGHAI SCR—SCR30DV
• SHANGHAI SCR—SCR30M
• SHANGHAI SCR—SCR40M

Technical specifications

Dimensions and media data for the OCP replacement of SCHULZ 00701481.

D1 outer diameter

134 mm (5.28 in)

D2 diameter

170 mm (6.69 in)

D3 diameter

76 mm (2.99 in)

H1 height

200 mm (7.87 in)

GTIN

8721606862152

This part also replaces

The same OCP replacement covers these OEM codes as well as SCHULZ 00701481.

and 41 more
