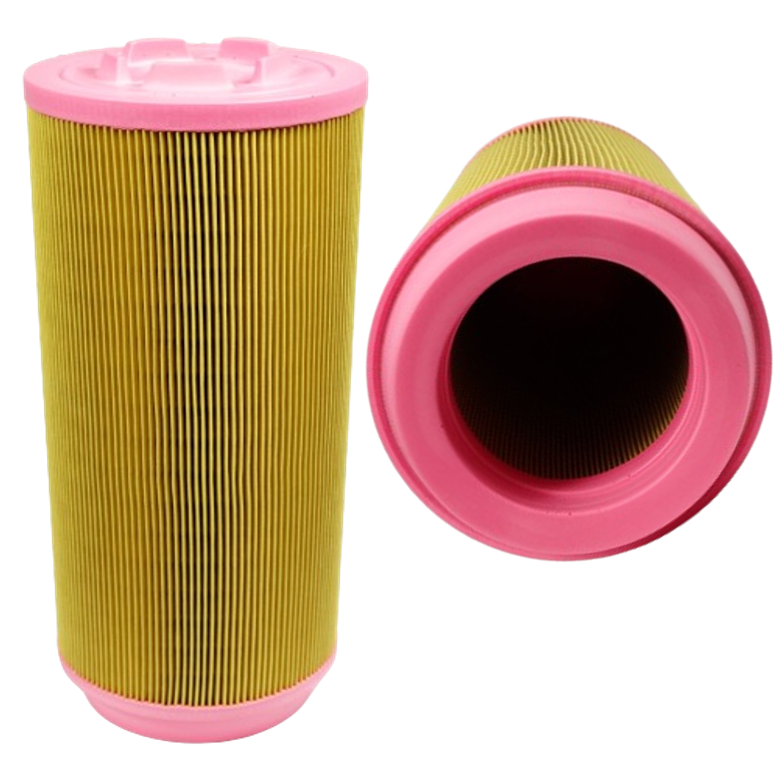

030010102 SUCCESS ENGINE Replacement Part

SUCCESS ENGINE 030010102 cross-reference details

Brand

SUCCESS ENGINE

Searched part number

030010102

Matched part number

030010102

OCP replacement SKU

AF525-014

Keltec / alternative SKU

KA525-014

Product type

Air Filter

Compressor models this part fits

SUCCESS ENGINE 030010102 / OCP AF525-014 is listed for the following compressors.

• ATLAS COPCO—GA11+ / BQD120814 / 08.2022 >
• ATLAS COPCO—GA15+ / BQD120814 / 08.2022 >
• ATLAS COPCO—GA18+ / BQD120814 / 08.2022 >
• ATLAS COPCO—GA22 FF HAVE DUTY / CAI838708 / 30 HP
• ATLAS COPCO—GA22+ / BQD120814 / 08.2022 >
• ATLAS COPCO—GA26+ / BQD120814 / 08.2022 >
• ATLAS COPCO—GA26FF / CAI 838708 / 35 HP
• ATLAS COPCO—GA30 / BQD120814 / 08.2022 >
• ATLAS COPCO—XA(S)77KD / Oct/2007> / kubota D1105
• ATLAS COPCO—XAS37KD / Oct/2007> / kubota D1105
• ATLAS COPCO—XAS47Kd / Oct/2007> / kubota D902
• ATLAS COPCO—XAS76 Dd / DEUTZ
• ATLAS COPCO—XAS90Kd7 / Oct/2007> / KUBOTA D1105
• BOGE—C 25 7,5/8/10/13 bar 18,5 kW
• BOGE—C 25D 7,5/8/10/13 bar 18,5 kW
• BOGE—C 25F 7,5/8/10/13 bar 22,0 kW
• BOGE—C 25FD 7,5/8/10/13 bar 22,0 kW
• BOGE—C 30 7,5/8/10/13 bar 22,0 kW
• BOGE—C 30D 7,5/8/10/13 bar 22,0 kW
• BOGE—C 30F 7,5/8/10/13 bar 22,0 kW
• BOGE—C 30FD 7,5/8/10/13 bar 22,0 kW
• BOGE—C30
• BOGE—S 20-2 8/10/13 bar 15,0 kW
• BOGE—S 24 8/10/13 bar 18,5 kW
• BOGE—S 24-2 10/13 bar 18,5 kW
• BOGE—S 24-2 8 bar 18,5 kW
• BOGE—S 29 8/10/13 bar 22,0 kW
• BOGE—S 29-2 10/13 bar 22,0 kW
• BOGE—S 29-2 8 bar 22,0 kW
• BOGE—SD 20-2 8/10/13 bar 15,0 kW
• BOGE—SD 24 8/10/13 bar 18,5 kW
• BOGE—SD 24-2 10/13 bar 18,5 kW
• BOGE—SD 24-2 8 bar 18,5 kW
• BOGE—SD 29 8/10/13 bar 22,0 kW
• BOGE—SD 29-2 10/13 bar 22,0 kW
• BOGE—SD 29-2 8 bar 22,0 kW
• BOGE—SDF 24 8/10/13 bar 18,5 kW
• BOGE—SDF 24-2 10/13 bar 18,5 kW
• BOGE—SDF 24-2 8 bar 18,5 kW
• BOGE—SDF 29-2 8/10/13 bar 22,0 kW
• BOGE—SF 24 8/10/13 bar 18,5 kW
• BOGE—SF 24-2 10/13 bar 18,5 kW
• BOGE—SF 24-2 8 bar 18,5 kW
• BOGE—SF 29-2 8/10/13 bar 22,0 kW
• CHICAGO PNEUMATIC—CPS-130 / DEUTZ / 7 BAR
• CHICAGO PNEUMATIC—CPS-150 / DEUTZ / 7 BAR
• CHICAGO PNEUMATIC—CPS-70 New / KUBOTA / 7 BAR
• CHICAGO PNEUMATIC—CPS-90 / Jan-2008> / KUBOTA D1105 / 7 BAR
• CHICAGO PNEUMATIC—CPS-90 importado velho / KUBOTA / 7 BAR
• COAIRE—AS20 / 30 HP / 100/120/135 (PSI)
• COAIRE—AS30 / 30 HP / 100/120/135 (PSI)
• COAIRE—AS40 / 40 HP / 100/120/135 (PSI)
• DOOSAN—7-20 / Kubota 3IRJ5N
• DOOSAN—P65AWK
• ELGI—E18 HORIZON New / 25 HP / 7/8/10/12 BAR
• ELGI—E22 HORIZON New / 30 HP / 7/8/10/12 BAR
• ELGI—EG18 GLOBAL SERIES / 25 HP / 7 E 8 BAR / Jan/2012>
• ELGI—EG22 GLOBAL SERIES / 30 HP / 7, 8 E 10 BAR / Jan/2012>
• FS-CURTIS—GS20 / 20 HP / 7-8-10-12 BAR
• FS-CURTIS—GS20(VSD) / 20 HP / 7-8-10-12 BAR
• FS-CURTIS—GS30 / 30 HP / 7-8-10-12 BAR
• FS-CURTIS—GS30(VSD) / 30 HP / 7-8-10-12 BAR
• INGERSOLL RAND—7-20 / Kubota D1005E / 01/2004>12/2009
• INGERSOLL RAND—P65
• KAESER—M38D
• KAESER—MD38
• ODIN—OD20AP / 20HP / 2024

Technical specifications

Dimensions and media data for the OCP replacement of SUCCESS ENGINE 030010102.

D1 outer diameter

125 mm (4.92 in)

D2 diameter

74 mm (2.91 in)

H1 height

320 mm (12.6 in)

H2 height

287 mm (11.3 in)

GTIN

8721606869670

This part also replaces

The same OCP replacement covers these OEM codes as well as SUCCESS ENGINE 030010102.

and 21 more
