ASR868 TEC-FIL Replacement Part

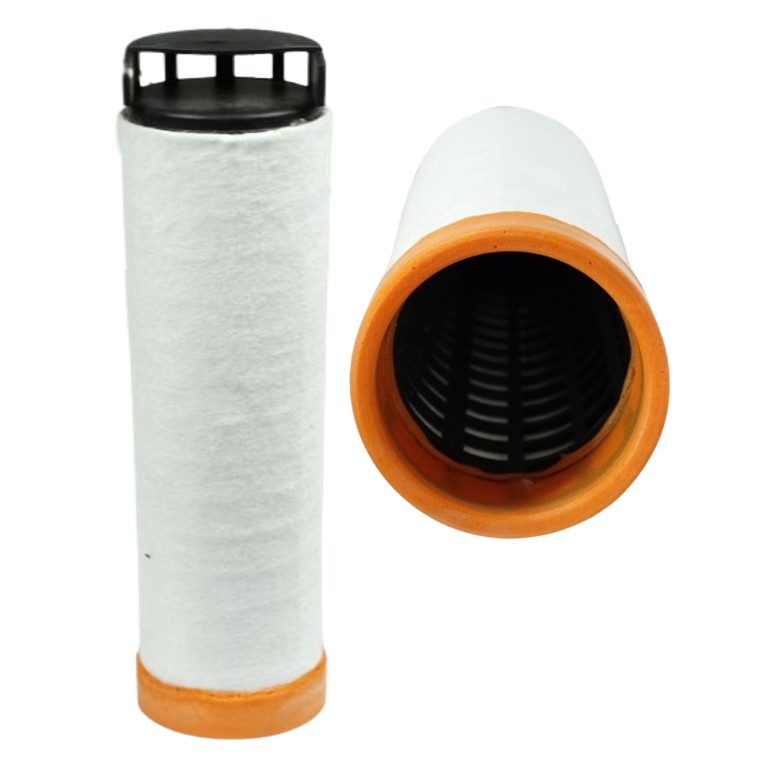

ASR868 is a TEC-FIL compressor part number. In the Compressor Parts Finder database, TEC-FIL ASR868 cross-references to OCP AF455-008, an air filter, fitted to 11 listed compressor models.
TEC-FIL ASR868 cross-reference details
- Brand
- TEC-FIL
- Searched part number
- ASR868
- Matched part number
- ASR868
- OCP replacement SKU
- AF455-008
- Keltec / alternative SKU
- KA455-008
- Product type
- Air Filter
Compressor models this part fits
TEC-FIL ASR868 / OCP AF455-008 is listed for the following compressors.
- ATLAS COPCO—GA22 FF HAVE DUTY / CAI838708 / 30 HP
- ATLAS COPCO—XAS76 Dd / DEUTZ
- CHICAGO PNEUMATIC—CPS-130 / DEUTZ / 7 BAR
- CHICAGO PNEUMATIC—CPS-150 / DEUTZ / 7 BAR
- CHICAGO PNEUMATIC—CPS-90 / Jan-2008> / KUBOTA D1105 / 7 BAR
- COAIRE—AS20 / 30 HP / 100/120/135 (PSI)
- COAIRE—AS30 / 30 HP / 100/120/135 (PSI)
- COAIRE—AS40 / 40 HP / 100/120/135 (PSI)
- DOOSAN—P65AWK
- ELGI—E22 HORIZON New / 30 HP / 7/8/10/12 BAR
- INGERSOLL RAND—P65
Technical specifications
Dimensions and media data for the OCP replacement of TEC-FIL ASR868.
- D1 outer diameter
- 66 mm (2.6 in)
- D2 diameter
- 52 mm (2.05 in)
- H1 height
- 304 mm (11.97 in)
- H2 height
- 298 mm (11.73 in)
This part also replaces
The same OCP replacement covers these OEM codes as well as TEC-FIL ASR868.
