DV021806 TECHNOLAB Replacement Part

DV021806 is a TECHNOLAB compressor part number. In the Compressor Parts Finder database, TECHNOLAB DV021806 cross-references to OCP OS280-006, an air/oil separator, fitted to 5 listed compressor models.

TECHNOLAB DV021806 cross-reference details

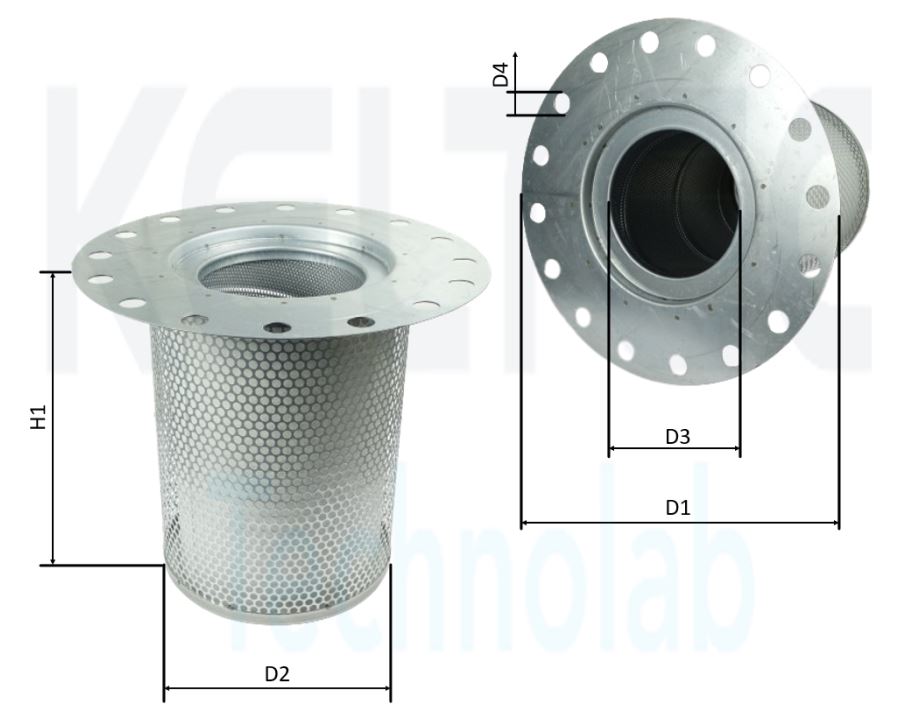

OCP OS280-006 — replacement part for TECHNOLAB DV021806
Brand
TECHNOLAB
Searched part number
DV021806
Matched part number
DV021806
OCP replacement SKU
OS280-006
Keltec / alternative SKU
KV280-006
Product type
Air/Oil Separator

Compressor models this part fits

TECHNOLAB DV021806 / OCP OS280-006 is listed for the following compressors.

Technical specifications

Dimensions and media data for the OCP replacement of TECHNOLAB DV021806.

D1 outer diameter
263 mm (10.35 in)
D2 diameter
400 mm (15.75 in)
D3 diameter
156 mm (6.14 in)
H1 height
360 mm (14.17 in)
H2 height
348 mm (13.7 in)
G2 thread
M8 x 1.25
Flow
16 Nm³/min
Residual oil content
3 ppm
Media construction
Wrapped
Media material
Fiberglass
Service life *
4000 h
GTIN
8721606861148

* Estimated figure for a complete service: air filter, separator, valves and the matching OCP lubricant (OCP 4000 = 4,000 h).

This part also replaces

The same OCP replacement covers these OEM codes as well as TECHNOLAB DV021806.
