DV035101 TECHNOLAB Replacement Part

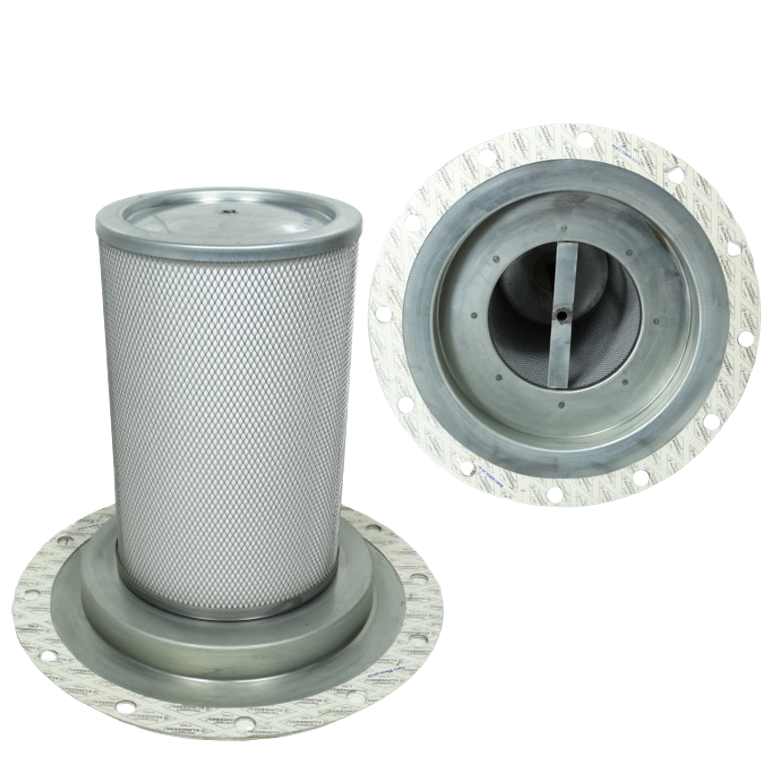

DV035101 is a TECHNOLAB compressor part number. In the Compressor Parts Finder database, TECHNOLAB DV035101 cross-references to OCP OS420-001, an air/oil separator, fitted to 2 listed compressor models.
TECHNOLAB DV035101 cross-reference details
- Brand
- TECHNOLAB
- Searched part number
- DV035101
- Matched part number
- DV035101
- OCP replacement SKU
- OS420-001
- Keltec / alternative SKU
- KV420-001
- Product type
- Air/Oil Separator
Compressor models this part fits
TECHNOLAB DV035101 / OCP OS420-001 is listed for the following compressors.
- WORTHINGTON—ROLLAIR-200 / 200 (HP) / 8,8 (PSI)
- WORTHINGTON—ROLLAIR-300 BR / 350 (HP) / 8,8 (PSI)
Technical specifications
Dimensions and media data for the OCP replacement of TECHNOLAB DV035101.
- D1 outer diameter
- 295 mm (11.61 in)
- D2 diameter
- 585 mm (23.03 in)
- D3 diameter
- 242 mm (9.53 in)
- H1 height
- 520 mm (20.47 in)
This part also replaces
The same OCP replacement covers these OEM codes as well as TECHNOLAB DV035101.
