46829 WIX Replacement Part

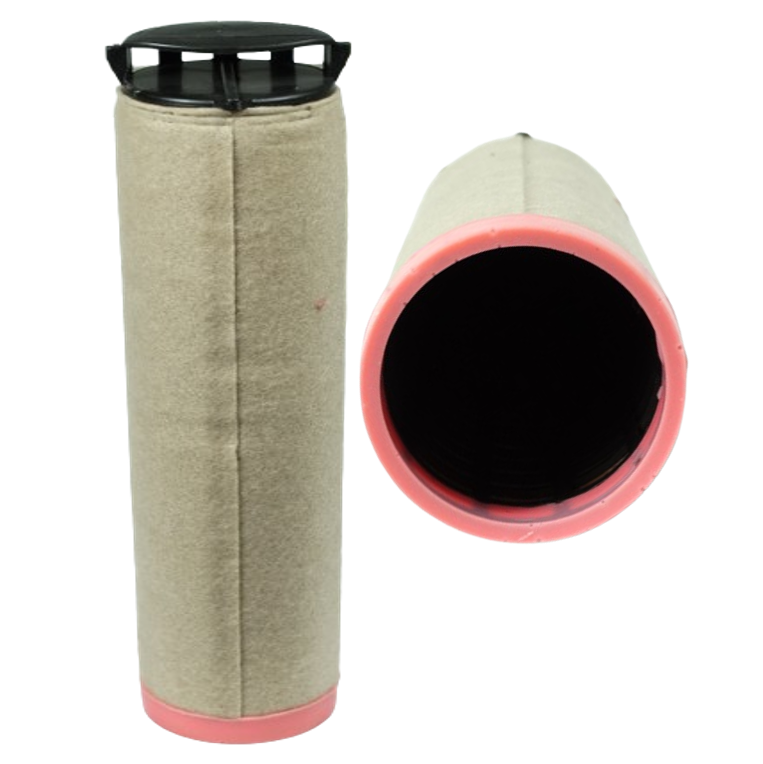

46829 is a WIX compressor part number. In the Compressor Parts Finder database, WIX 46829 cross-references to OCP AF620-010, an air filter, fitted to 17 listed compressor models.
WIX 46829 cross-reference details
- Brand
- WIX
- Searched part number
- 46829
- Matched part number
- 46829
- OCP replacement SKU
- AF620-010
- Keltec / alternative SKU
- KA620-010
- Product type
- Air Filter
Compressor models this part fits
WIX 46829 / OCP AF620-010 is listed for the following compressors.
- ATLAS COPCO—XA125MWd / Sep/2000> / MWM
- ATLAS COPCO—XA125MWd / Sep/2001> / MWM
- ATLAS COPCO—XA175MWd / Sep/2000> / MWM
- ATLAS COPCO—XA175MWd / Sep/2001> / MWM
- ATLAS COPCO—XA56MWd / May/2003> / MWM
- ATLAS COPCO—XA56MWd / May/2004> / MWM
- ATLAS COPCO—XA90MWd / Sep/2000> / MWM
- ATLAS COPCO—XA90MWd / Sep/2001> / MWM
- ATLAS COPCO—XAHS146MWd Phase2 / Mar/2003> / MWM
- ATLAS COPCO—XAS136MWd Phase2 / Mar/2003> / MWM
- ATLAS COPCO—XAS186MWd Phase2 / Mar/2003> / MWM
- ATLAS COPCO—XAS96MWd Phase2 / Mar/2003> / MWM
- ATLAS COPCO—XATS176MWd Phase2 / Mar/2003> / MWM
- COMPAIR—C37 / DEUTZ F3L1011F
- COMPAIR—C51 / DEUTZ F3L1011F
- SCHULZ—SRP3040FLEX / 40 HP / 12/2009←
- SCHULZ—SRP3050FLEX / 50HP / 12/2009→ / 110/131/160
Technical specifications
Dimensions and media data for the OCP replacement of WIX 46829.
- D1 outer diameter
- 86.5 mm (3.41 in)
- D2 diameter
- 73 mm (2.87 in)
- H1 height
- 357 mm (14.06 in)
- H2 height
- 349 mm (13.74 in)
- GTIN
- 8721606869762
This part also replaces
The same OCP replacement covers these OEM codes as well as WIX 46829.
