220090044 WORTHINGTON Replacement Part
220090044 is a WORTHINGTON compressor part number. In the Compressor Parts Finder database, WORTHINGTON 220090044 cross-references to OCP OS530-021, an air/oil separator, fitted to 6 listed compressor models.
WORTHINGTON 220090044 cross-reference details
- Brand
- WORTHINGTON
- Searched part number
- 220090044
- Matched part number
- 220090044
- OCP replacement SKU
- OS530-021
- Keltec / alternative SKU
- KV530-021
- Product type
- Air/Oil Separator
Compressor models this part fits
WORTHINGTON 220090044 / OCP OS530-021 is listed for the following compressors.
- CHICAGO PNEUMATIC—CPE-100 / CNK 200214 / 07/2009> / 100 HP / 8 BAR
- CHICAGO PNEUMATIC—CPE-100D-E-F / API210057 / 2008 / 100 HP / 7/8/10/12 BAR / 100 à 175 PSI
- CHICAGO PNEUMATIC—CPE-75 / CNK 200214 / 07/2009> / 75 HP / 8 BAR
- CHICAGO PNEUMATIC—CPE-75A-B-C / API210057 / 2008 / 75 HP / 7/8/10/12 BAR / 100 à 175 PSI
- CHICAGO PNEUMATIC—CPVS-100K / AP210057 / 2008 / 100 HP
- CHICAGO PNEUMATIC—CPVS-80J / API210057 / 2008 / 80 HP

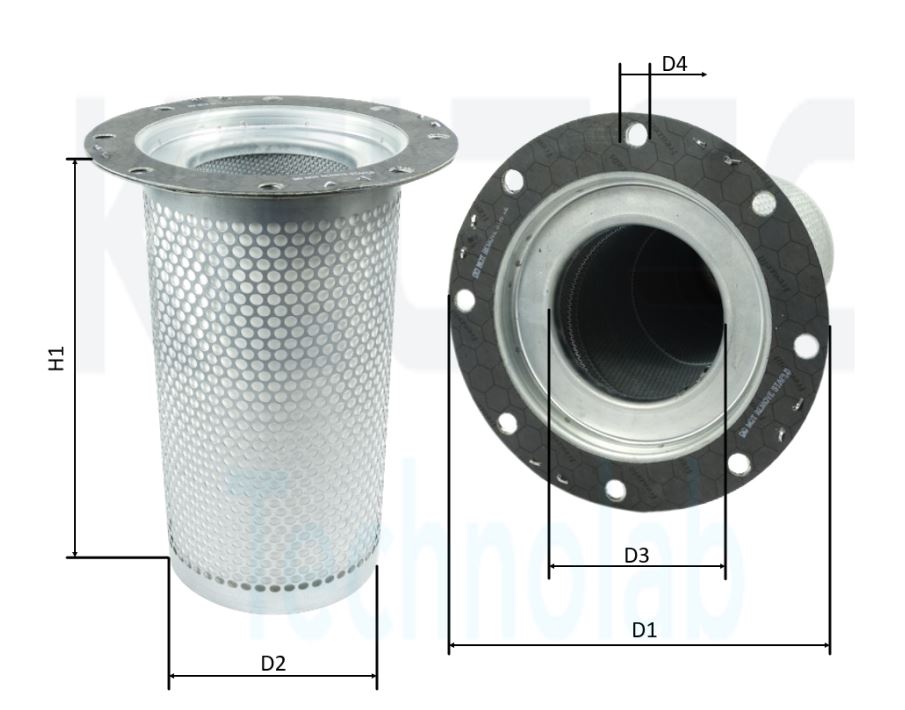

Technical specifications
Dimensions and media data for the OCP replacement of WORTHINGTON 220090044.
- D1 outer diameter
- 168 mm (6.61 in)
- D2 diameter
- 240 mm (9.45 in)
- D3 diameter
- 110 mm (4.33 in)
- H1 height
- 378 mm (14.88 in)
- GTIN
- 8721606861865
This part also replaces
The same OCP replacement covers these OEM codes as well as WORTHINGTON 220090044.
